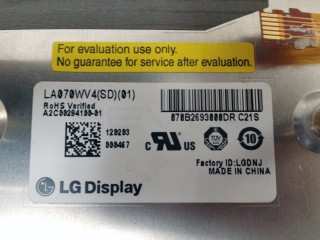

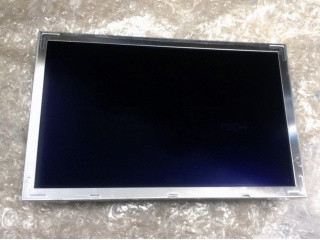

LG Display LA070WV4-SD01 - TFT-LCD 800 x 480

Product description

LA070WV4-SD01 is a display manufactured by LG Display. It has a resolution of 800 x 480, brightness of 470 cd/m2 and contrast of 900:1.

Electrical Specs

Total Power Consumption (Watts): 4.28
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 7S2P
Baklight Arrangement: 2 rows
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 19.3
Backlight Voltage Typical: 19.3
Backlight Voltage Maximum: 19.3
Backlight Current Minimum (mAh): 80
Backlight Current Typical (mAh): 85
Backlight Current Maximum (mAh): 85
Typical Backlight Consumption: 3.42
Backlight Driver Board: None
Backlight Connection: via FPC Flex Cable
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Typical LCD Power Consumption: 0.86
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.19
Glare: Antiglare
Glare: 11
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 470
Contrast: 900
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 65
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 70
Bottom Viewing Angle: 70
Optimal Viewing Direction: Symmetrical
Response Time: 15
Response Time: 10
Chromaticity: 0.31
Chromaticity: 0.34
light uniformity: 1.11/1.25 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 91.44
Bezel Height: 95.55
Outline Vertical: 109.6
Outline Depth Typical: 9.2

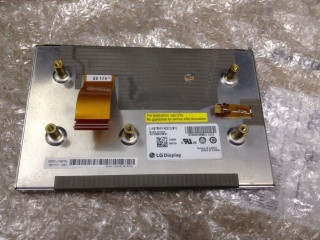

Mounting: Rear mounting holes (5-M3) on pole
Orientation: Vertical
Mounting Holes: Rear mounting holes (5-M3) on pole

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 258.5
Typical Weight: 258.5
Maximum Weight: 258.5

Temperature Specs

Minimum Operating Temperature: -40
Maximum Operating Temperature: 90
Storage Temperature Minumum: -40
Storage Temperature Maximum: 105
