8" Inch TFT-LCD Display

LA080WV1-TD01
LG Display

Home
TFT-LCD
LG Display
LA080WV1-TD01

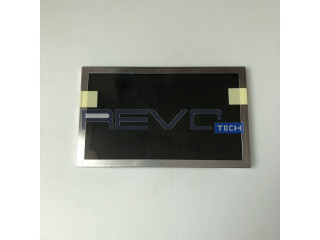

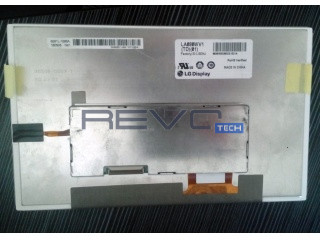

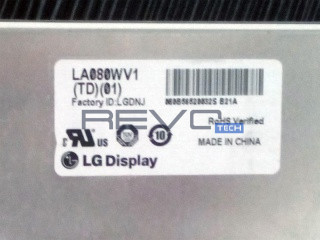

LG Display LA080WV1-TD01 - TFT-LCD 800 x 480

Product description

LA080WV1-TD01 is a display manufactured by LG Display. It has a resolution of 800 x 480, brightness of 700 cd/m2 and contrast of 500:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 3000 units
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 15000
Backlight Driver Board: With LED Driver
Backlight Connection: Embedded into Signal
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 6-bit
VCC: 5
Typical LCD Power Consumption: 0.7
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.07
Dot pitch vertical: 0.21
Glare: Antiglare
Reflection: Yes
Reflection type: Typ
Reflection: 4
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 700
Contrast: 500
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 50
Bottom Viewing Angle: 60
Optimal Viewing Direction: 6 o'clock
Response Time: 5
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.32
light uniformity: 1.25 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 8
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 99.36
Bezel Height: 103.4
Outline Vertical: 121
Outline Depth Typical: 7.2
Outline Depth Max: 11.2000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 275
Typical Weight: 275
Maximum Weight: 275

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 85
