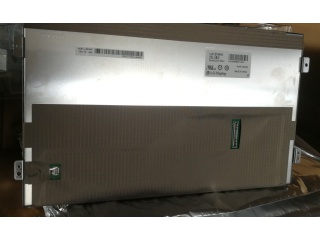

12.1" Inch TFT-LCD Display
LA121WH1-SL02
LG Display

Product description

LA121WH1-SL02 is a display manufactured by LG Display. It has a resolution of 1280 x 720, brightness of 500 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 6.54
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 8S3P
Baklight Arrangement: 3 rows
Lamp Lifetime (Time to Half Brightness): 10000
Backlight Voltage Minimum: 21.6
Backlight Voltage Typical: 21.6
Backlight Voltage Maximum: 21.6
Backlight Current Minimum (mAh): 70
Backlight Current Typical (mAh): 75
Backlight Current Maximum (mAh): 75
Maximum Backlight Consumption: 6.05
Typical Backlight Consumption: 5.04
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Maximum LCD Power Consumption: 2
Typical LCD Power Consumption: 1.5
Signal Interface: Connector

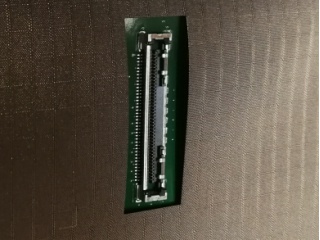

Signal Interface Model: DF80-40S-0.5V
Signal Interface Connectors: 1
Signal Pins Quantity: 40

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 720
Dot Pitch: 0.07
Dot pitch vertical: 0.21
Glare: Antiglare
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 500
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 62
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.3
Chromaticity: 0.32
light uniformity: 1.11/1.25 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 12.1
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 150.12
Bezel Height: 152.55
Outline Vertical: 163.45
Outline Depth Typical: 6.8
Outline Depth Max: 10.5600
Mounting: Face mounting holes (4 pcs) on left, right slugs
Orientation: Vertical
Mounting Holes: Face mounting holes (4 pcs) on left, right slugs

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 417
Typical Weight: 417
Maximum Weight: 417

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -40
Storage Temperature Maximum: 95
