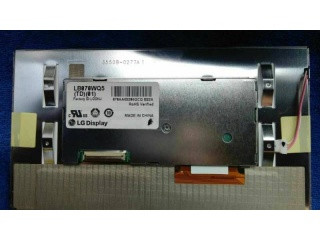

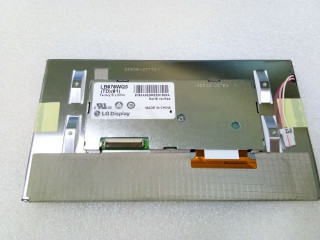

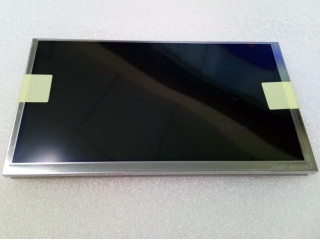

7" Inch TFT-LCD Display

LB070WQ5-TD01
LG Display

Home
TFT-LCD
LG Display
LB070WQ5-TD01

7" Inch TFT-LCD Display
LB070WQ5-TD01
LG Display

Product description

LB070WQ5-TD01 is a display manufactured by LG Display. It has a resolution of 480 x 240, brightness of 500 cd/m2 and contrast of 400:1.

Electrical Specs

Total Power Consumption (Watts): 4.5
Backlight Location: Edge
Backlight: CCFL
Lamp Lifetime (Time to Half Brightness): 15000
Backlight Voltage Minimum: 565
Backlight Voltage Typical: 565
Backlight Voltage Maximum: 565
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 6.5
Maximum Backlight Consumption: 3.83
Typical Backlight Consumption: 3.48
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHSR-02VS-1
Blu interface pin pitch mm: 3.5
Blu interface amount: 1
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: TTL
Signal Channels: 1
Signal bits: 6-bit
VCC: 5
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: FH12K-40S-0.5SH
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40
Signal Pins Configuration: DRGB-40P1C6B-080A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 480 x 240
Dot Pitch: 0.11
Dot pitch vertical: 0.35
Glare: Antiglare
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 500
Contrast: 400
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 45
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 50
Bottom Viewing Angle: 60
Optimal Viewing Direction: 6 o'clock
Response Time: 10
Response Time: 20
Chromaticity: 0.3
Chromaticity: 0.32
light uniformity: 1.25 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 17 x 9
Shape: Flat Rectangle
Vertical Active Area: 82.8
Bezel Height: 85.1
Outline Vertical: 93.5
Outline Depth Typical: 7.3
Outline Depth Max: 10.7000
Mounting: Rear mount holes (4-M2)
Orientation: Vertical
Mounting Holes: Rear mount holes (4-M2)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 215
Typical Weight: 215
Maximum Weight: 215

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -40
Storage Temperature Maximum: 85
