7" Inch TFT-LCD Display

LB070WV3-SD02
LG Display

Home
TFT-LCD
LG Display
LB070WV3-SD02

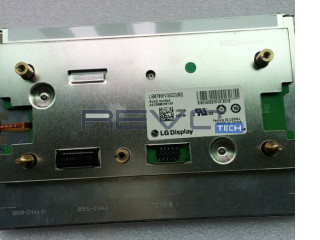

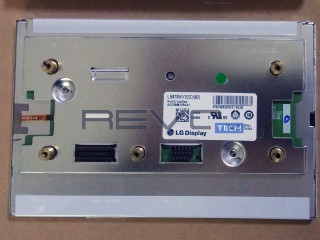

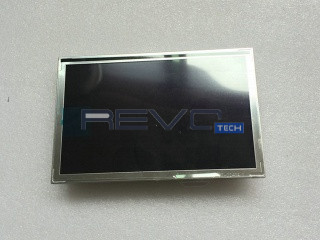

LG Display LB070WV3-SD02 - TFT-LCD 800 x 480

Product description

LB070WV3-SD02 is a display manufactured by LG Display. It has a resolution of 800 x 480, brightness of 470 cd/m2 and contrast of 900:1.

Electrical Specs

Total Power Consumption (Watts): 6.45
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 5S3P
Baklight Arrangement: 3 rows
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 14.7
Backlight Voltage Typical: 14.7
Backlight Voltage Maximum: 14.7
Backlight Current Minimum (mAh): 94.2
Backlight Current Typical (mAh): 100
Backlight Current Maximum (mAh): 100
Maximum Backlight Consumption: 6
Typical Backlight Consumption: 4.15
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: IRISO
Backlight Interface Model: 9850S-10B-TR
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 10
Blu interface pin configuration: 0
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Maximum LCD Power Consumption: 1.98
Typical LCD Power Consumption: 1.52
Signal Interface: Connector
Signal Interface Manufacturer: IRISO
Signal Interface Model: IMSA-9828S-40A-GFC
LCD Signal Interface Pins Pitch (mm): 0.8
Signal Interface Connectors: 1
Signal Pins Quantity: 40

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.19
Glare: Antiglare
Reflection: Yes
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 470
Contrast: 900
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 63
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 30
Bottom Viewing Angle: 30
Response Time: 15
Response Time: 14
Chromaticity: 0.3
Chromaticity: 0.33
light uniformity: 1.18/1.25 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 91.44
Bezel Height: 94.8
Outline Vertical: 109.6
Outline Depth Typical: 15.3
Outline Depth Max: 29.4000
Mounting: Rear mounting holes (3-M3) on pole
Orientation: Vertical
Mounting Holes: Rear mounting holes (3-M3) on pole

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 325
Typical Weight: 325
Maximum Weight: 325

Temperature Specs

Minimum Operating Temperature: -40
Maximum Operating Temperature: 95
Storage Temperature Minumum: -40
Storage Temperature Maximum: 105
