10.4" Inch TFT-LCD Display

LB104V03-A1
LG Display

Home
TFT-LCD
LG Display
LB104V03-A1

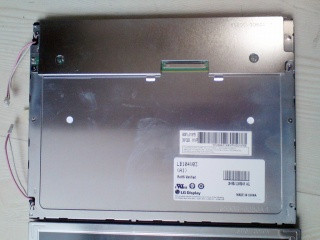

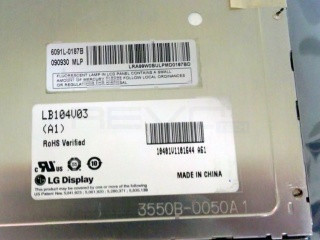

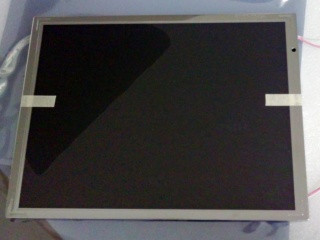

10.4" Inch TFT-LCD Display
LB104V03-A1
LG Display

Product description

LB104V03-A1 is a display manufactured by LG Display. It has a resolution of 640 x 480, brightness of 400 cd/m2 and contrast of 300:1.

Electrical Specs

Total Power Consumption (Watts): 6.3
Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 40000
Backlight Voltage Minimum: 455
Backlight Voltage Typical: 455
Backlight Voltage Maximum: 455
Backlight Current Minimum (mAh): 2
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 7
Backlight Operation Frequency: 55
Maximum Backlight Consumption: 6.4
Typical Backlight Consumption: 5.8
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Maximum LCD Power Consumption: 0.66
Typical LCD Power Consumption: 0.58
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 640 x 480
Dot Pitch: 0.11
Dot pitch vertical: 0.33
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 400
Contrast: 300
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 45
Color Gamut Type: NTSC
Left Viewing Angle: 60
Top Viewing Angle: 60
Right Viewing Angle: 40
Bottom Viewing Angle: 50
Optimal Viewing Direction: 6 o'clock
Response Time: 5
Response Time: 25
Chromaticity: 0.3
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 10.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 158.4
Bezel Height: 163
Outline Vertical: 180
Outline Depth Typical: 8
Outline Depth Max: 10.5000
Mounting: Side mounting holes (4-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 490
Typical Weight: 490
Maximum Weight: 490

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
