19" Inch TFT-LCD Display
LB190E01-SL01
LG Display

Product description

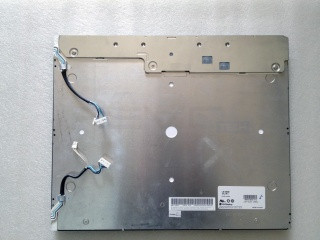

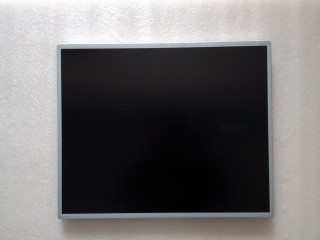

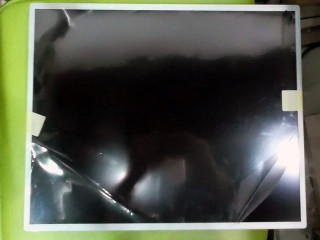

LB190E01-SL01 is a display manufactured by LG Display. It has a resolution of 1280 x 1024, brightness of 1000 cd/m2 and contrast of 900:1.

Electrical Specs

Total Power Consumption (Watts): 35.05
Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 6 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 45000
Backlight Voltage Minimum: 655
Backlight Voltage Typical: 655
Backlight Voltage Maximum: 655
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 7
Backlight Current Maximum (mAh): 7.5
Maximum Backlight Consumption: 31.19
Typical Backlight Consumption: 28.35
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHSR-02VS-1, BHR-05VS-1
Blu interface pin pitch mm: 3.5
Blu interface amount: 2
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Typical LCD Power Consumption: 5.54
Signal Interface: Connector
Signal Interface Manufacturer: LS Mtron
Signal Interface Model: GT101-30S-H16
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 1024
Dot Pitch: 0.1
Dot pitch vertical: 0.29
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 1000
Contrast: 900
Gray Scale: 8-bit
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Response Time: 11
Response Time: 14
Chromaticity: 0.27
Chromaticity: 0.31
Sunlight Readable: Yes
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 19
Aspect Ratio: 5 x 4
Shape: Flat Rectangle
Vertical Active Area: 301.06
Bezel Height: 305
Outline Vertical: 324
Outline Depth Typical: 16.5
Outline Depth Max: 20.5000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2645
Typical Weight: 2645
Maximum Weight: 2645

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
