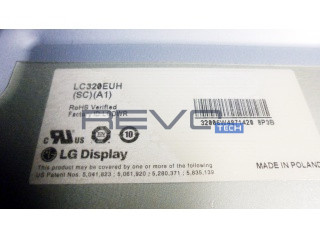

LG Display LC320EUH-SCA1 - TFT-LCD 1920 x 1080 Full HD

Product description

LC320EUH-SCA1 is a display manufactured by LG Display. It has a resolution of 1920 x 1080, brightness of 450 cd/m2 and contrast of 1300:1.

Electrical Specs

Total Power Consumption (Watts): 73.2
Backlight Location: Edge
Backlight: WLED
Baklight Arrangement: 6 rows × 2CN
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 92.8
Backlight Voltage Typical: 99.2
Backlight Voltage Maximum: 105.6
Backlight Current Minimum (mAh): -2.75
Backlight Current Typical (mAh): 55
Backlight Current Maximum (mAh): 57.75
Minimum Backlight Consumption: 61
Maximum Backlight Consumption: 70
Typical Backlight Consumption: 65.5
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 20010HS-13(BK), 20010HS-12
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 13
Blu interface pin configuration: 0
Signal type: Mini LVDS
VCC: 3.3
LCD Signal VDD: 16
Typical LCD Power Consumption: 7.7
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: TF06L-60S-0.5SH
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 2
Signal Pins Quantity: 60

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.12
Dot pitch vertical: 0.36
Glare: Antiglare
Glare: 10
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 450
Contrast: 1300
Gray Scale: 8-bit + Dithering
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 8
Response Time: 10
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.30 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 31.5
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 392.85
Bezel Height: 399.8
Outline Vertical: 435.8
Outline Depth Typical: 10.8
Mounting: Side mounting holes; Rear mounting holes
Orientation: Vertical
Mounting Holes: Side mounting holes; Rear mounting holes

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 6650
Typical Weight: 6650
Maximum Weight: 6650

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
