31.5" Inch TFT-LCD Display

LC320WXN-SAC1
LG Display

Home
TFT-LCD
LG Display
LC320WXN-SAC1

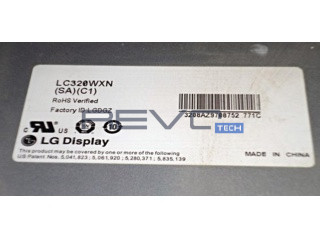

LG Display LC320WXN-SAC1 - TFT-LCD 1366 x 768

Product description

LC320WXN-SAC1 is a display manufactured by LG Display. It has a resolution of 1366 x 768, brightness of 500 cd/m2 and contrast of 1100:1.

Electrical Specs

Total Power Consumption (Watts): 87.5
Backlight Location: Direct
Backlight: EEFL
Backlight Lamp Quantity: 12 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With Inverter
Minimum Backlight Consumption: 84
Maximum Backlight Consumption (Watts): 92.4
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 20022WR-14B1
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 4.6
Typical LCD Power Consumption: 3.5
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-X30SSL-HF
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P1C8B-015F

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.17
Dot pitch vertical: 0.51
Glare: Antiglare
Glare: 13
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 500
Contrast: 1100
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.30 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 31.5
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 392.26
Bezel Height: 398.4
Outline Vertical: 450
Outline Depth Typical: 48
Mounting: Face mounting holes (9-Φ5.0); Side mounting holes (5-M4); Rear mounting holes (8-M4)
Orientation: Vertical
Mounting Holes: Face mounting holes (9-Φ5.0); Side mounting holes (5-M4); Rear mounting holes (8-M4)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 6460
Typical Weight: 6460
Maximum Weight: 6460

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
