37" Inch TFT-LCD Display

LC370WUN-SBA1
LG Display

Home
TFT-LCD
LG Display
LC370WUN-SBA1

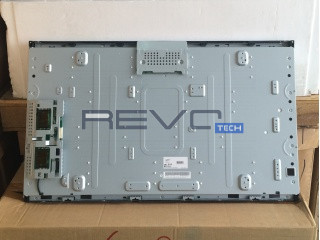

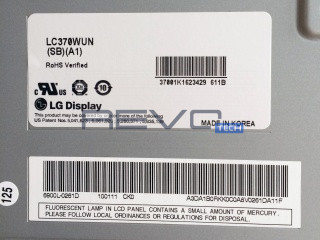

LG Display LC370WUN-SBA1 - TFT-LCD 1920 x 1080 Full HD

Product description

LC370WUN-SBA1 is a display manufactured by LG Display. It has a resolution of 1920 x 1080, brightness of 500 cd/m2 and contrast of 1400:1.

Electrical Specs

Total Power Consumption (Watts): 131.88
Backlight Location: Direct
Backlight: EEFL
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With Inverter
Minimum Voltage Driver Consumption: 22.8
Maximum Voltage Driver Consumption: 25.2
Minimum Backlight Consumption: 125
Maximum Backlight Consumption (Watts): 132
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 20022WR-14B1
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8/10-bit
VCC: 12
Maximum LCD Power Consumption: 8.94
Typical LCD Power Consumption: 6.88
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS050-C51B-C39-A
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51
Signal Pins Configuration: LVDS-51P2C10B-030C

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.14
Dot pitch vertical: 0.43
Glare: Antiglare
Glare: 10
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 500
Contrast: 1400
Colors: 16700000
Gray Scale: 8-bit
Gray method value 2: 8-bit + Dithering
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.30 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 37
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 460.89
Bezel Height: 469.8
Outline Vertical: 516.8
Outline Depth Typical: 55.5
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 7950
Typical Weight: 7950
Maximum Weight: 7950

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
