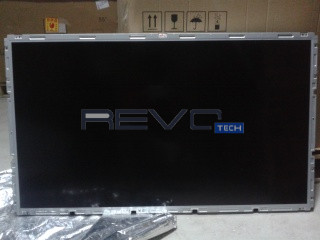

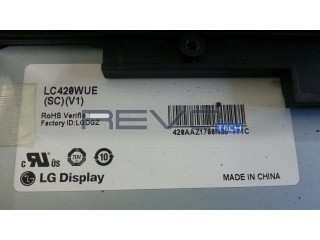

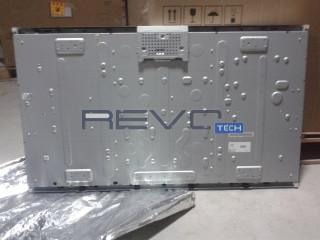

LG Display LC420WUE-SCV1 - TFT-LCD 1920 x 1080 Full HD

Product description

LC420WUE-SCV1 is a display manufactured by LG Display. It has a resolution of 1920 x 1080, brightness of 400 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 137.8
Backlight Location: Direct
Backlight: EEFL
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 60000
Backlight Voltage Minimum: 750
Backlight Voltage Typical: 750
Backlight Voltage Maximum: 750
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 8.5
Backlight Current Maximum (mAh): 9
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 65002WS-03
Blu interface pin pitch mm: 6.5
Blu interface amount: 2
Blu interface pin amount: 3
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8/10-bit
VCC: 12
Typical LCD Power Consumption: 7.8
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-R51S-HF
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51
Signal Pins Configuration: LVDS-51P2C10B-030E

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.16
Dot pitch vertical: 0.48
Glare: Antiglare
Glare: 10
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 400
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gray method value 2: 8-bit + Dithering
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.30 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 42
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 523.26
Bezel Height: 531
Outline Vertical: 576
Outline Depth Typical: 46
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 9050
Typical Weight: 9050
Maximum Weight: 9050

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
