47" Inch TFT-LCD Display

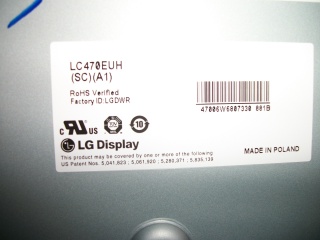

LC470EUH-SCA1
LG Display

Product description

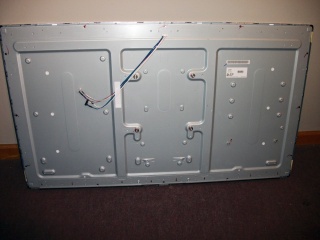

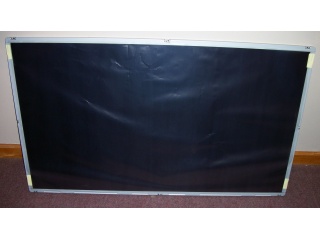

LC470EUH-SCA1 is a display manufactured by LG Display. It has a resolution of 1920 x 1080, brightness of 450 cd/m2 and contrast of 1400:1.

Electrical Specs

Total Power Consumption (Watts): 110.5
Backlight Location: Edge
Backlight: WLED
Baklight Arrangement: 6 rows × 2CN
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 127.6
Backlight Voltage Typical: 136.4
Backlight Voltage Maximum: 145.2
Backlight Current Minimum (mAh): -2.75
Backlight Current Typical (mAh): 55
Backlight Current Maximum (mAh): 57.75
Minimum Backlight Consumption: 80
Maximum Backlight Consumption: 100.6
Typical Backlight Consumption: 90
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 20010HS-13, 20010HS-12
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 13
Blu interface pin configuration: 0
Signal type: Mini LVDS
VCC: 12
Maximum LCD Power Consumption: 11.09
Typical LCD Power Consumption: 8.53
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: TF06L-60S-0.5SH
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 2
Signal Pins Quantity: 60

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.18
Dot pitch vertical: 0.54
Glare: Antiglare
Glare: 10
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 450
Contrast: 1400
Gray Scale: 8-bit + Dithering
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 8
Response Time: 10
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.30 (Max.)
(5 points)
Sunlight Readable: No

Mechanical specs

Display Type: LCM
Size: 47
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 584.82
Bezel Height: 592.8
Outline Vertical: 628.8
Outline Depth Typical: 21
Outline Depth Max: 26.3000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 14750
Typical Weight: 14750
Maximum Weight: 14750

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
