55" Inch TFT-LCD Display

LC550EQE-PGF1
LG Display

Home
TFT-LCD
LG Display
LC550EQE-PGF1

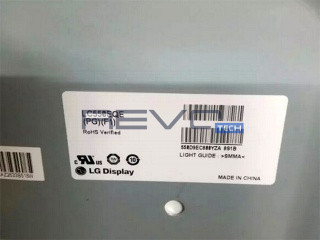

LG Display LC550EQE-PGF1 - TFT-LCD 3840 x 2160 UHD 4K

Product description

LC550EQE-PGF1 is a display manufactured by LG Display. It has a resolution of 3840 x 2160, brightness of 400 cd/m2 and contrast of 1200:1.

Electrical Specs

Total Power Consumption (Watts): 116.1
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 75.6
Backlight Voltage Typical: 75.6
Backlight Voltage Maximum: 75.6
Backlight Current Minimum (mAh): -6
Backlight Current Typical (mAh): 105
Backlight Current Maximum (mAh): 111
Maximum Backlight Consumption: 104.4
Typical Backlight Consumption: 95.3
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: UJU
Backlight Interface Model: HS100-L08N-N62, HS100-L08N-N62-A
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 8
Blu interface pin configuration: 0
Signal type: V-by-One 8 lane
VCC: 12
Maximum LCD Power Consumption: 27.1
Typical LCD Power Consumption: 20.8
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-RE51S-HF
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 3840 x 2160
Dot Pitch: 0.11
Dot pitch vertical: 0.32
Glare: Antiglare
Glare: 1
Hardness: Hard coating (2H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 400
Contrast: 1200
Colors: 16700000
Gray Scale: 8-bit
Gray method value 2: 8-bit + Dithering
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.54 (Max.)
(9 points)
3D Type: 3D (Polarizer Glass)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 55
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 680.4
Outline Vertical: 702.1
Outline Depth Max: 23.4000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 15500
Typical Weight: 15500
Maximum Weight: 15500

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
