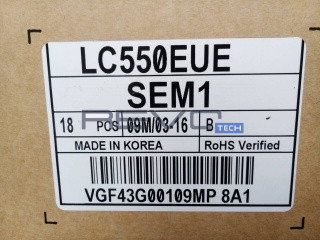

LC550EUE-SEM1

LG Display LC550EUE-SEM1 - TFT-LCD 1920 x 1080 Full HD

Product description

LC550EUE-SEM1 is a display manufactured by LG Display. It has a resolution of 1920 x 1080, brightness of 360 cd/m2 and contrast of 1600:1.

Electrical Specs

Total Power Consumption (Watts): 109.6
Backlight Location: Edge
Backlight: WLED
Baklight Arrangement: 6 rows × 2CN
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 64.9
Backlight Voltage Typical: 71.5
Backlight Voltage Maximum: 78.1
Backlight Current Minimum (mAh): -5.25
Backlight Current Typical (mAh): 105
Backlight Current Maximum (mAh): 110.25
Maximum Backlight Consumption: 98.4
Typical Backlight Consumption: 90.1
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: UJU
Backlight Interface Model: HS100-L08N-N62, HS100-L08N-N62-A
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 8
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 9.67
Typical LCD Power Consumption: 7.4
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-RE51S-HF
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.21
Dot pitch vertical: 0.63
Glare: Antiglare
Glare: 10
Hardness: Hard coating (2H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 360
Contrast: 1600
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 68
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.35 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 55
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 680.4
Bezel Height: 688.4
Outline Vertical: 720.9
Outline Depth Typical: 22
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 16200
Typical Weight: 16200
Maximum Weight: 16200

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
