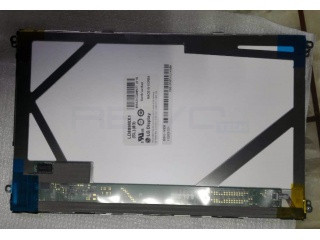

8.9" Inch TFT-LCD Display

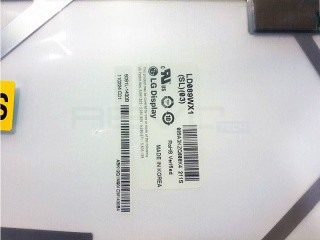

LD089WX1-SL03
LG Display

Product description

LD089WX1-SL03 is a display manufactured by LG Display. It has a resolution of 1280 x 768, brightness of 370 cd/m2 and contrast of 800:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 7S4P
Baklight Arrangement: 4 rows
Backlight Voltage Minimum: 22.75
Backlight Voltage Typical: 22.75
Backlight Voltage Maximum: 22.75
Backlight Current Minimum (mAh): 20
Backlight Current Typical (mAh): 21
Backlight Current Maximum (mAh): 21
Maximum Backlight Consumption: 1.99
Typical Backlight Consumption: 1.82
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Maximum LCD Power Consumption: 0.93
Typical LCD Power Consumption: 0.84
Signal Interface: Connector
LCD Signal Interface Pins Pitch (mm): 0.4
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P1C8B-310A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 768
Dot Pitch: 0.05
Dot pitch vertical: 0.15
Glare: Glare
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 370
Contrast: 800
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.3
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 8.9
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 116.35
Bezel Height: 119.35
Outline Vertical: 130.4
Outline Depth Max: 3.2000
Mounting: Face mounting holes (4 pcs) on left, right slugs
Orientation: Vertical
Mounting Holes: Face mounting holes (4 pcs) on left, right slugs

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 143.5
Typical Weight: 143.5
Maximum Weight: 143.5

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
