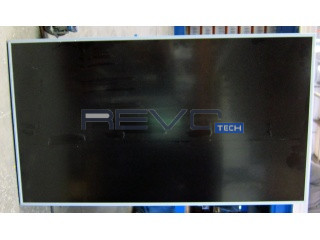

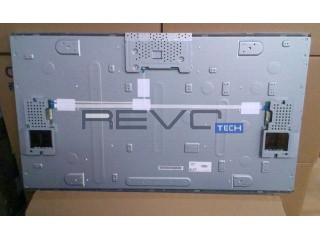

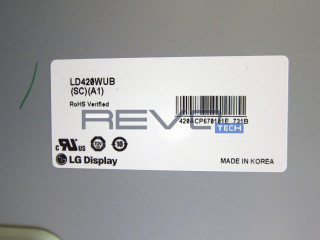

LG Display LD420WUB-SCA1 - TFT-LCD 1920 x 1080 Full HD

Product description

LD420WUB-SCA1 is a display manufactured by LG Display. It has a resolution of 1920 x 1080, brightness of 700 cd/m2 and contrast of 1200:1.

Electrical Specs

Total Power Consumption (Watts): 175.8
Backlight Location: Direct
Backlight: CCFL
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With Inverter
Minimum Backlight Consumption: 168
Maximum Backlight Consumption (Watts): 192
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: S14B-PH-SMC-TB, S12B-PH-SMC-TB
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8/10-bit
VCC: 12
Maximum LCD Power Consumption: 10.1
Typical LCD Power Consumption: 7.8
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-R51S-HF
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51
Signal Pins Configuration: LVDS-51P2C10B-030A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.16
Dot pitch vertical: 0.48
Glare: Antiglare
Glare: 10
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 700
Contrast: 1200
Colors: 16700000
Gray Scale: 8-bit
Gray method value 2: 8-bit + Dithering
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.30 (Max.)
(5 points)
Sunlight Readable: Yes
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 42
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 523.26
Bezel Height: 529.2
Outline Vertical: 549.4
Outline Depth Typical: 35.5
Outline Depth Max: 54.5000
Mounting: Side mounting holes (8-M4); Rear mounting holes (8-M4)
Orientation: Vertical / Horizontal
Bezel Thickness: 26.2
Mounting Holes: Side mounting holes (8-M4); Rear mounting holes (8-M4)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 11000
Typical Weight: 11000
Maximum Weight: 11000

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
