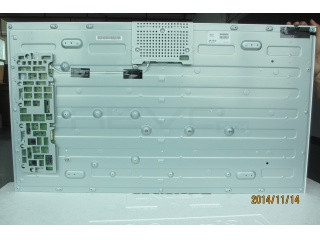

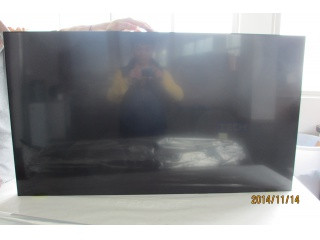

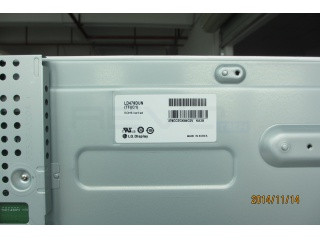

47" Inch TFT-LCD Display

LD470DUN-TFC1
LG Display

Home
TFT-LCD
LG Display
LD470DUN-TFC1

47" Inch TFT-LCD Display
LD470DUN-TFC1
LG Display

Product description

LD470DUN-TFC1 is a display manufactured by LG Display. It has a resolution of 1920 x 1080, brightness of 450 cd/m2 and contrast of 1200:1.

Electrical Specs

Total Power Consumption (Watts): 117.37
Backlight Location: Direct
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 22.8
Maximum Voltage Driver Consumption: 25.2
Minimum Backlight Consumption: 106.47
Maximum Backlight Consumption (Watts): 121.22
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 20022WR-H14B2
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 10-bit
VCC: 12
Maximum LCD Power Consumption: 14.17
Typical LCD Power Consumption: 10.9
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-RE51S-HF
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.18
Dot pitch vertical: 0.54
Glare: Antiglare
Glare: 10
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 450
Contrast: 1200
Gray Scale: 8-bit + Dithering
Gamut Percentage: 68
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.25/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 47
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 584.82
Bezel Height: 585.12
Outline Vertical: 590
Outline Depth Typical: 36.8
Outline Depth Max: 52.8000
Orientation: Vertical / Horizontal
Bezel Thickness: 5.2

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 12505
Typical Weight: 12505
Maximum Weight: 12505

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
