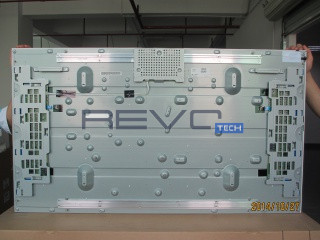

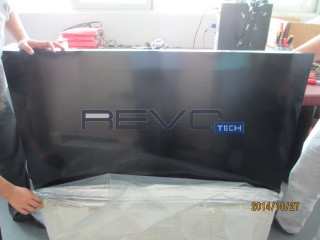

55" Inch TFT-LCD Display

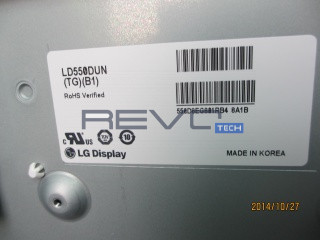

LD550DUN-TGB1
LG Display

Product description

LD550DUN-TGB1 is a display manufactured by LG Display. It has a resolution of 1920 x 1080, brightness of 500 cd/m2 and contrast of 1400:1.

Electrical Specs

Total Power Consumption (Watts): 160.3
Backlight Location: Direct
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 60000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 21.6
Maximum Voltage Driver Consumption: 26.4
Minimum Backlight Consumption: 147.4
Maximum Backlight Consumption (Watts): 165.2
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 20022WR-14B2, 20022WR-12B2
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 10-bit
VCC: 12
Maximum LCD Power Consumption: 16.8
Typical LCD Power Consumption: 12.9
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-RE51S-HF
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.21
Dot pitch vertical: 0.63
Glare: Antiglare
Glare: 10
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 500
Contrast: 1400
Gray Scale: 8-bit + Dithering
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.11/1.25 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 55
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 680.4
Bezel Height: 680.7
Outline Vertical: 684.2
Outline Depth Typical: 34.6
Outline Depth Max: 51.3000
Orientation: Vertical / Horizontal
Bezel Thickness: 3.8

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 18550
Typical Weight: 18550
Maximum Weight: 18550

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
