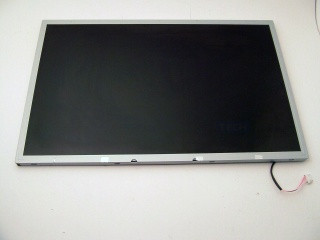

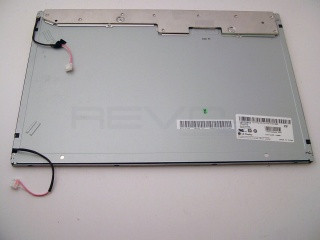

17.1" Inch TFT-LCD Display

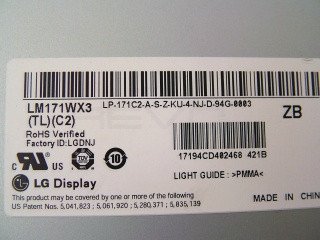

LM171WX3-TLC2
LG Display

Product description

LM171WX3-TLC2 is a display manufactured by LG Display. It has a resolution of 1440 x 900, brightness of 250 cd/m2 and contrast of 800:1.

Electrical Specs

Total Power Consumption (Watts): 13.2
Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 40000
Backlight Voltage Minimum: 615
Backlight Voltage Typical: 615
Backlight Voltage Maximum: 615
Backlight Current Minimum (mAh): 2.5
Backlight Current Typical (mAh): 8
Backlight Current Maximum (mAh): 9
Backlight Operation Frequency: 60
Maximum Backlight Consumption: 11.35
Typical Backlight Consumption: 10.32
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BDBR-03(4.0)V-1S
Blu interface pin pitch mm: 4
Blu interface amount: 2
Blu interface pin amount: 3
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 3.3
Typical LCD Power Consumption: 2.88
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS100-L30O-C23
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160C

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1440 x 900
Dot Pitch: 0.09
Dot pitch vertical: 0.26
Glare: Antiglare
Glare: 12
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 800
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 60
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 65
Bottom Viewing Angle: 85
Optimal Viewing Direction: 6 o'clock
Response Time: 2
Response Time: 6
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 17.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 229.5
Bezel Height: 232.9
Outline Vertical: 254.5
Outline Depth Typical: 11.5
Outline Depth Max: 12.0000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1395
Typical Weight: 1395
Maximum Weight: 1395

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
