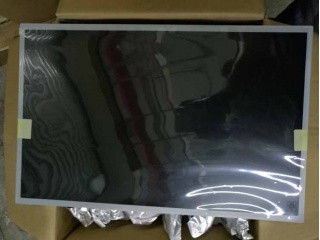

19" Inch TFT-LCD Display

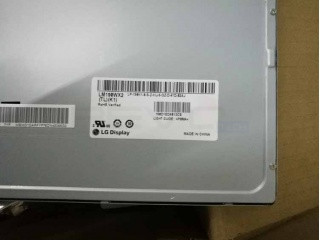

LM190WX2-TLK1
LG Display

Home
TFT-LCD
LG Display
LM190WX2-TLK1

19" Inch TFT-LCD Display
LM190WX2-TLK1
LG Display

Product description

LM190WX2-TLK1 is a display manufactured by LG Display. It has a resolution of 1440 x 900, brightness of 250 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 11.2
Backlight Location: Edge (Right side)
Backlight: WLED
Backlight Lamp Quantity: 13S2P
Baklight Arrangement: 2 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 37.4
Backlight Voltage Typical: 39
Backlight Voltage Maximum: 40.6
Backlight Current Minimum (mAh): 90
Backlight Current Typical (mAh): 95
Backlight Current Maximum (mAh): 95
Maximum Backlight Consumption: 7.5
Typical Backlight Consumption: 7
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: SM06B-SHJH(HF)
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 4.85
Typical LCD Power Consumption: 4.2
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS100-L30O-C23
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160C

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1440 x 900
Dot Pitch: 0.09
Dot pitch vertical: 0.28
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 75
Bottom Viewing Angle: 85
Optimal Viewing Direction: 6 o'clock
Response Time: 1.3
Response Time: 3.7
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 19
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 255.15
Bezel Height: 259
Outline Vertical: 278
Outline Depth Typical: 8.6
Outline Depth Max: 10.7000
Mounting: Side mounting holes (4-M3) on left right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1435
Typical Weight: 1435
Maximum Weight: 1435

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
