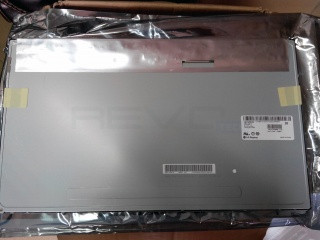

19.5" Inch TFT-LCD Display

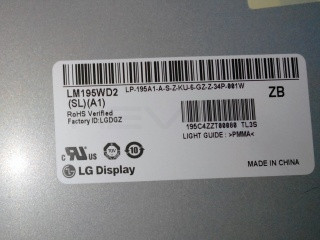

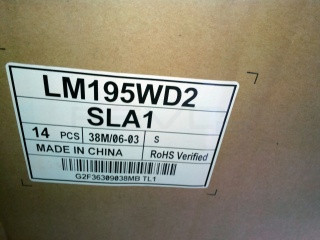

LM195WD2-SLA1
LG Display

Home
TFT-LCD
LG Display
LM195WD2-SLA1

19.5" Inch TFT-LCD Display
LM195WD2-SLA1
LG Display

Product description

LM195WD2-SLA1 is a display manufactured by LG Display. It has a resolution of 1600 x 900, brightness of 250 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 10.93
Backlight Location: Edge (Right side)
Backlight: WLED
Backlight Lamp Quantity: 12S2P
Baklight Arrangement: 2 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 34.4
Backlight Voltage Typical: 36.8
Backlight Voltage Maximum: 39.2
Backlight Current Minimum (mAh): 110
Backlight Current Typical (mAh): 115
Backlight Current Maximum (mAh): 115
Maximum Backlight Consumption: 8.6
Typical Backlight Consumption: 8.1
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: LS Mtron
Backlight Interface Model: GT108-6P-H26-E3500
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Typical LCD Power Consumption: 2.83
Signal Interface: Connector
Signal Interface Manufacturer: LS Mtron
Signal Interface Model: GT103-30S-HF15-E2500
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1600 x 900
Dot Pitch: 0.09
Dot pitch vertical: 0.26
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 19.5
Aspect Ratio: 17 x 9
Shape: Flat Rectangle
Vertical Active Area: 236.34
Bezel Height: 239.6
Outline Vertical: 263
Outline Depth Typical: 8.2
Outline Depth Max: 11.0000
Mounting: Side mounting holes (4-M3) on up and down side
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on up and down side

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1560
Typical Weight: 1560
Maximum Weight: 1560

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
