20.1" Inch TFT-LCD Display

LM201WE2-SLA1
LG Display

Home
TFT-LCD
LG Display
LM201WE2-SLA1

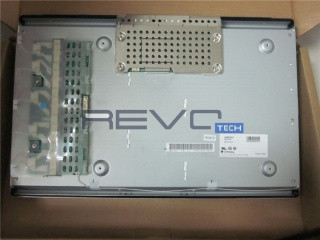

LG Display LM201WE2-SLA1 - TFT-LCD 1680 x 1050

Product description

LM201WE2-SLA1 is a display manufactured by LG Display. It has a resolution of 1680 x 1050, brightness of 470 cd/m2 and contrast of 1600:1.

Electrical Specs

Total Power Consumption (Watts): 54.81
Backlight Location: Direct
Backlight: CCFL
Backlight Lamp Quantity: 10 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With Inverter
Minimum Voltage Driver Consumption: 22
Maximum Voltage Driver Consumption: 26
Minimum Backlight Consumption: 41.5
Maximum Backlight Consumption (Watts): 50.7
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: S14B-PHA-SM3-TB
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 6.72
Typical LCD Power Consumption: 5.59
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS100-L30B-C23
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-180C

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1680 x 1050
Dot Pitch: 0.09
Dot pitch vertical: 0.26
Glare: Glare
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 470
Contrast: 1600
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 5
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.45 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 20.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 270.9
Bezel Height: 275.9
Outline Vertical: 296.8
Outline Depth Typical: 36.9
Mounting: Face mounting holes
Orientation: Vertical
Mounting Holes: Face mounting holes

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2680
Typical Weight: 2680
Maximum Weight: 2680

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
