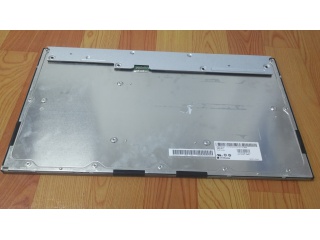

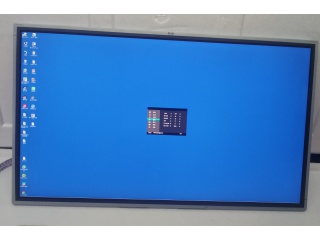

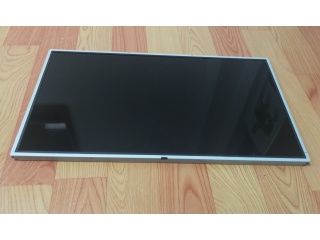

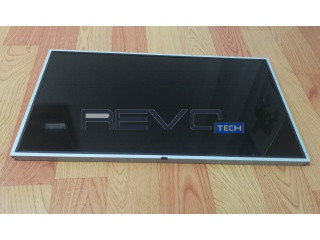

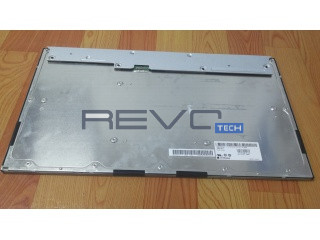

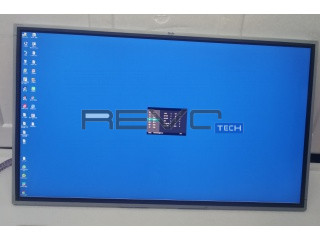

21.5" Inch TFT-LCD Display
LM215UH1-SPA1
LG Display

Product description

LM215UH1-SPA1 is a display manufactured by LG Display. It has a resolution of 4096 x 2304, brightness of 540 cd/m2 and contrast of 1200:1.

Electrical Specs

Total Power Consumption (Watts): 29
Backlight Location: Edge (Bottom side)
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 39.9
Backlight Voltage Typical: 39.9
Backlight Voltage Maximum: 39.9
Backlight Current Minimum (mAh): 140
Backlight Current Typical (mAh): 145
Backlight Current Maximum (mAh): 145
Maximum Backlight Consumption: 25.5
Typical Backlight Consumption: 23.9
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 10035WR-H06D
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: eDP
Signal Channels: 4
VCC: 10
Maximum LCD Power Consumption: 6.37
Typical LCD Power Consumption: 5.1
Signal Interface: Connector
Signal Interface Manufacturer: LS Mtron
Signal Interface Model: GT05Q-30S-H10-MN
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: EDP-30P4L-050B

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 4096 x 2304
Dot Pitch: 0.04
Dot pitch vertical: 0.12
Hardness: Hard coating (2H)
Reflection: Yes
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 540
Contrast: 1200
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 99
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.58 (Max.)
(13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 21.5
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 267.77
Bezel Height: 273.1
Outline Vertical: 293.5
Outline Depth Max: 13.8000
Mounting: Rear mounting holes (7-M3)
Orientation: Vertical
Mounting Holes: Rear mounting holes (7-M3)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1720
Typical Weight: 1720
Maximum Weight: 1720

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
