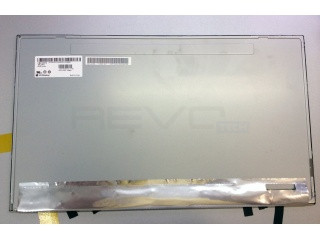

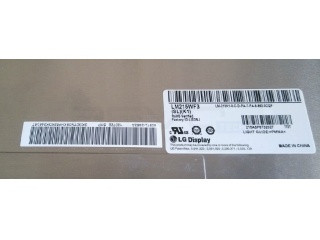

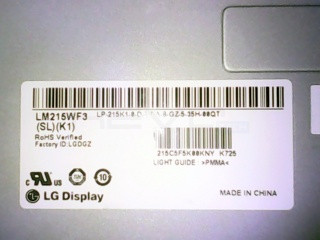

21.5" Inch TFT-LCD Display

LM215WF3-SLK1
LG Display

Home
TFT-LCD
LG Display
LM215WF3-SLK1

21.5" Inch TFT-LCD Display
LM215WF3-SLK1
LG Display

Product description

LM215WF3-SLK1 is a display manufactured by LG Display. It has a resolution of 1920 x 1080, brightness of 250 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 15.65
Backlight Location: Edge (Right side)
Backlight: WLED
Backlight Lamp Quantity: 16S2P
Baklight Arrangement: 2 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 46.4
Backlight Voltage Typical: 49.6
Backlight Voltage Maximum: 52.8
Backlight Current Minimum (mAh): 120
Backlight Current Typical (mAh): 125
Backlight Current Maximum (mAh): 125
Maximum Backlight Consumption: 12.7
Typical Backlight Consumption: 11.9
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: SM06B-SHJH(HF)
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 4.7
Typical LCD Power Consumption: 3.75
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS100-L30O-C23
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160B

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.08
Dot pitch vertical: 0.25
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 21.5
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 267.79
Bezel Height: 271.3
Outline Vertical: 292.2
Outline Depth Typical: 8.9
Outline Depth Max: 11.0000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1970
Typical Weight: 1970
Maximum Weight: 1970

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
