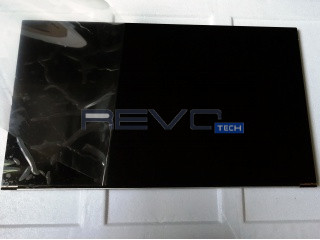

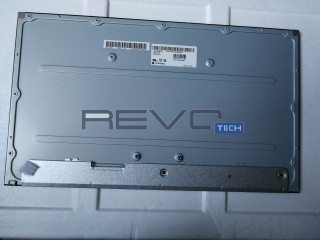

21.5" Inch TFT-LCD Display

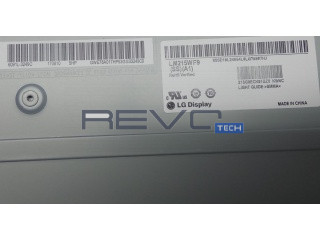

LM215WF9-SSA1
LG Display

Product description

LM215WF9-SSA1 is a display manufactured by LG Display. It has a resolution of 1920 x 1080, brightness of 250 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 11.2
Backlight Location: Edge (Bottom side)
Backlight: WLED
Backlight Lamp Quantity: 13S4P
Baklight Arrangement: 4 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 34.8
Backlight Voltage Typical: 37.4
Backlight Voltage Maximum: 40
Backlight Current Minimum (mAh): 55
Backlight Current Typical (mAh): 60
Backlight Current Maximum (mAh): 60
Maximum Backlight Consumption: 8.8
Typical Backlight Consumption: 8.2
Backlight Driver Board: None
Backlight Connection: via Connector
Blu interface pin pitch mm: 0
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 3.75
Typical LCD Power Consumption: 3
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS100-L30O-C23
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160B

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.09
Dot pitch vertical: 0.26
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 21.5
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 267.79
Outline Vertical: 284.4
Outline Depth Typical: 8.55
Outline Depth Max: 12.7000
Mounting: Rear mounting holes (9-M3)
Mounting Holes: Rear mounting holes (9-M3)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1630
Typical Weight: 1630
Maximum Weight: 1630

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
