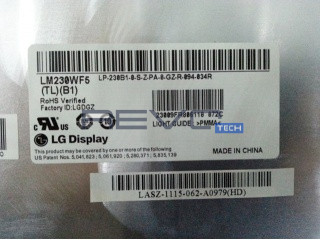

LG Display LM230WF5-TLB1 - TFT-LCD 1920 x 1080 Full HD

Product description

LM230WF5-TLB1 is a display manufactured by LG Display. It has a resolution of 1920 x 1080, brightness of 250 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 18.95
Backlight Location: Edge (Right side)
Backlight: WLED
Backlight Lamp Quantity: 3 strings
Baklight Arrangement: 3 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 41
Backlight Voltage Typical: 43.8
Backlight Voltage Maximum: 46.6
Backlight Current Minimum (mAh): 110
Backlight Current Typical (mAh): 125
Backlight Current Maximum (mAh): 125
Minimum Backlight Consumption: 13.53
Maximum Backlight Consumption: 15.38
Typical Backlight Consumption: 14.45
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 5.5
Typical LCD Power Consumption: 4.5
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.09
Dot pitch vertical: 0.27
Glare: Glare
Hardness: Hard coating (2H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 75
Bottom Viewing Angle: 85
Optimal Viewing Direction: 6 o'clock
Response Time: 1.3
Response Time: 3.7
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 23
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 286.42
Bezel Height: 291.02
Outline Vertical: 312
Outline Depth Typical: 10.6
Outline Depth Max: 11.5000
Mounting: Side mounting holes (2-M3) on left bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (2-M3) on left bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2000
Typical Weight: 2000
Maximum Weight: 2000

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
