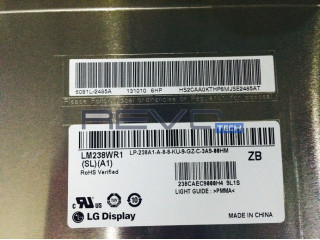

LG Display LM238WR1-SLA1 - TFT-LCD 3840 x 2160 UHD 4K

Product description

LM238WR1-SLA1 is a display manufactured by LG Display. It has a resolution of 3840 x 2160, brightness of 350 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 59.9
Backlight Location: Edge
Backlight: GB-r LED
Baklight Arrangement: 8 rows × 2CN
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 50.2
Backlight Voltage Typical: 50.2
Backlight Voltage Maximum: 50.2
Backlight Current Minimum (mAh): 75
Backlight Current Typical (mAh): 55
Backlight Current Maximum (mAh): 55
Maximum Backlight Consumption: 55.7
Typical Backlight Consumption: 52.2
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 20037WR-H12
Blu interface pin pitch mm: 2
Blu interface amount: 2
Blu interface pin amount: 12
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 8
Signal bits: 10-bit
VCC: 10
Maximum LCD Power Consumption: 9.62
Typical LCD Power Consumption: 7.7
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS050-C51B-C39-A
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 3840 x 2160
Dot Pitch: 0.05
Dot pitch vertical: 0.14
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 350
Contrast: 1000
Gray Scale: 8-bit + Hi-FRC
Gamut Percentage: 99
Color Gamut Type: Adobe
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 23.8
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 296.46
Bezel Height: 299.6
Outline Vertical: 323.4
Outline Depth Max: 16.0000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2420
Typical Weight: 2420
Maximum Weight: 2420

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
