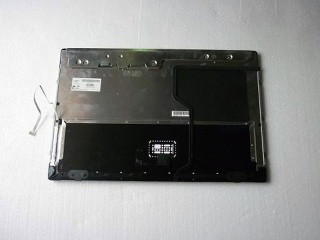

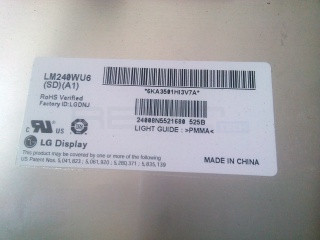

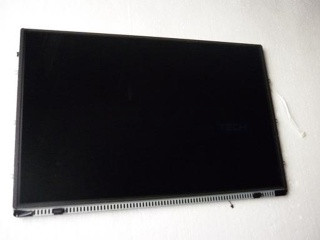

LG Display LM240WU6-SDA1 - TFT-LCD 1920 x 1200

Product description

LM240WU6-SDA1 is a display manufactured by LG Display. It has a resolution of 1920 x 1200, brightness of 320 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 71.17
Backlight Location: Edge (Bottom side)
Backlight: WLED
Baklight Arrangement: 3 rows
Lamp Lifetime (Time to Half Brightness): 39000
Backlight Voltage Minimum: 60
Backlight Voltage Typical: 60
Backlight Voltage Maximum: 60
Backlight Current Minimum (mAh): 350
Backlight Current Typical (mAh): 700
Backlight Current Maximum (mAh): 700
Minimum Backlight Consumption: 63
Maximum Backlight Consumption: 65.91
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: E&T
Backlight Interface Model: H212K-P06N-00B
Blu interface pin pitch mm: 1.25
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: eDP
Signal Channels: 4
VCC: 12
Maximum LCD Power Consumption: 7.04
Typical LCD Power Consumption: 6.12
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: KDF71G-30S-1H(500)
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1200
Dot Pitch: 0.09
Dot pitch vertical: 0.27
Glare: Glare
Hardness: Hard coating (2H)
Reflection: Yes
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 320
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 76
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 6.5
Response Time: 7.5
Chromaticity: 0.31
Chromaticity: 0.33
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 24
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 324
Bezel Height: 329
Outline Vertical: 361.6
Outline Depth Max: 18.8000
Mounting: Side mounting holes
Orientation: Vertical
Mounting Holes: Side mounting holes

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 3600
Typical Weight: 3600
Maximum Weight: 3600

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
