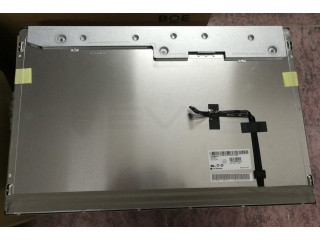

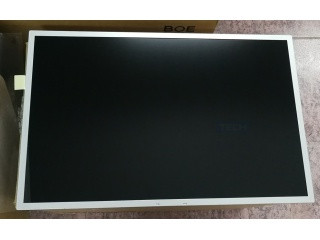

24" Inch TFT-LCD Display

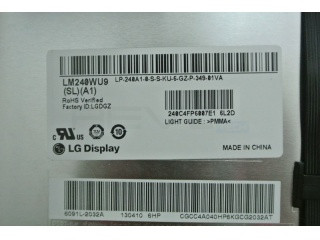

LM240WU9-SLA1
LG Display

Product description

LM240WU9-SLA1 is a display manufactured by LG Display. It has a resolution of 1920 x 1200, brightness of 350 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 36.96
Backlight Location: Edge
Backlight: GB-r LED
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 52.7
Backlight Voltage Typical: 52.7
Backlight Voltage Maximum: 52.7
Backlight Current Minimum (mAh): 90
Backlight Current Typical (mAh): 55
Backlight Current Maximum (mAh): 55
Maximum Backlight Consumption: 32.5
Typical Backlight Consumption: 30.6
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: E&T
Backlight Interface Model: H401K-D12N-12B
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 12
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 10-bit
VCC: 12
Maximum LCD Power Consumption: 7.32
Typical LCD Power Consumption: 6.36
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-RE51S-HF
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1200
Dot Pitch: 0.09
Dot pitch vertical: 0.27
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 350
Contrast: 1000
Gray Scale: 8-bit + Hi-FRC
Gamut Percentage: 99
Color Gamut Type: Adobe
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 24
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 324
Bezel Height: 328
Outline Vertical: 352
Outline Depth Max: 16.0000
Mounting: Side mounting holes
Orientation: Vertical
Mounting Holes: Side mounting holes

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2515
Typical Weight: 2515
Maximum Weight: 2515

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
