25.5" Inch TFT-LCD Display

LM260WU2-SLA2
LG Display

Home
TFT-LCD
LG Display
LM260WU2-SLA2

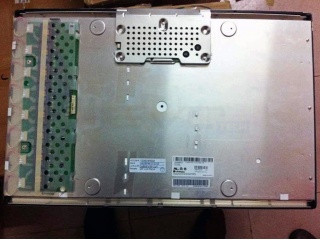

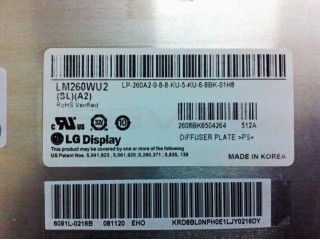

LG Display LM260WU2-SLA2 - TFT-LCD 1920 x 1200

Product description

LM260WU2-SLA2 is a display manufactured by LG Display. It has a resolution of 1920 x 1200, brightness of 400 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 90.78
Backlight Location: Direct
Backlight: CCFL
Backlight Lamp Quantity: 16 pcs
Lamp Lifetime (Time to Half Brightness): 40000
Backlight Driver Board: With Inverter
Minimum Voltage Driver Consumption: 22
Maximum Voltage Driver Consumption: 26
Minimum Backlight Consumption: 84
Maximum Backlight Consumption (Watts): 101
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: S14B-PHA-SM3-TB
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 8.16
Typical LCD Power Consumption: 6.78
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: KDF71G-30S-1H
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-210A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1200
Dot Pitch: 0.1
Dot pitch vertical: 0.29
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 400
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 102
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 5.5
Response Time: 6.5
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 25.5
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 343.8
Bezel Height: 347.8
Outline Vertical: 375.6
Outline Depth Typical: 41.5
Mounting: Side mounting holes (8-M3); Rear mounting holes (4-M3)
Orientation: Vertical
Mounting Holes: Side mounting holes (8-M3); Rear mounting holes (4-M3)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 3335
Typical Weight: 3335
Maximum Weight: 3335

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
