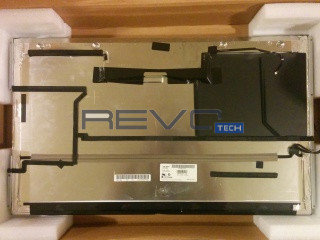

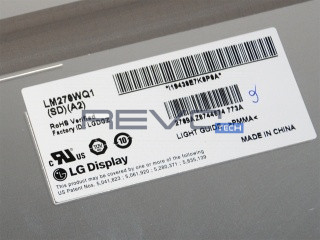

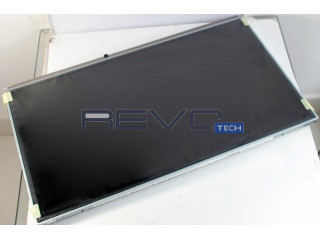

27" Inch TFT-LCD Display

LM270WQ1-SDA2
LG Display

Home
TFT-LCD
LG Display
LM270WQ1-SDA2

27" Inch TFT-LCD Display
LM270WQ1-SDA2
LG Display

Product description

LM270WQ1-SDA2 is a display manufactured by LG Display. It has a resolution of 2560 x 1440, brightness of 380 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 96.91
Backlight Location: Edge (Left and Right)
Backlight: WLED
Backlight Lamp Quantity: 6 strings
Baklight Arrangement: 6 rows
Lamp Lifetime (Time to Half Brightness): 39000
Backlight Voltage Minimum: 35
Backlight Voltage Typical: 35
Backlight Voltage Maximum: 35
Backlight Current Minimum (mAh): 350
Backlight Current Typical (mAh): 700
Backlight Current Maximum (mAh): 700
Maximum Backlight Consumption: 81.55
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: E&T
Backlight Interface Model: H401K-D12N-12B
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 12
Blu interface pin configuration: 0
Signal type: eDP
Signal Channels: 4
VCC: 12
Maximum LCD Power Consumption: 17.7
Typical LCD Power Consumption: 15.36
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-X30SSL-HF
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: EDP-30P4L-010B

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 2560 x 1440
Dot Pitch: 0.08
Dot pitch vertical: 0.23
Glare: Glare
Hardness: Hard coating (2H)
Reflection: Yes
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 380
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 6.5
Response Time: 7.5
Chromaticity: 0.31
Chromaticity: 0.33
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 27
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 335.66
Bezel Height: 340.7
Outline Vertical: 376.13
Outline Depth Typical: 16.26
Outline Depth Max: 22.3000
Mounting: Side mounting holes (12-M3) on left, right, up, down bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (12-M3) on left, right, up, down bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 4600
Typical Weight: 4600
Maximum Weight: 4600

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
