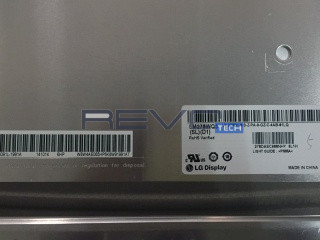

LG Display LM270WQ3-SLD1 - TFT-LCD 2560 x 1440 Quad HD

Product description

LM270WQ3-SLD1 is a display manufactured by LG Display. It has a resolution of 2560 x 1440, brightness of 300 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 50.04
Backlight Location: Edge
Backlight: GB-r LED
Baklight Arrangement: 8 rows
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 60
Backlight Voltage Typical: 60
Backlight Voltage Maximum: 60
Backlight Current Minimum (mAh): 105
Backlight Current Typical (mAh): 65
Backlight Current Maximum (mAh): 65
Maximum Backlight Consumption: 43.5
Typical Backlight Consumption: 40.8
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: E&T
Backlight Interface Model: H401K-D12N-12B
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 12
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 4
Signal bits: 10-bit
VCC: 12
Maximum LCD Power Consumption: 16.38
Typical LCD Power Consumption: 12.6
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS050-C51B-C39-A
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 2560 x 1440
Dot Pitch: 0.08
Dot pitch vertical: 0.23
Glare: Antiglare
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 300
Contrast: 1000
Gray Scale: 8-bit + Hi-FRC
Gamut Percentage: 99
Color Gamut Type: Adobe
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 27
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 335.66
Bezel Height: 340.4
Outline Vertical: 368.2
Outline Depth Typical: 13.3
Outline Depth Max: 18.5000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 3435
Typical Weight: 3435
Maximum Weight: 3435

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
