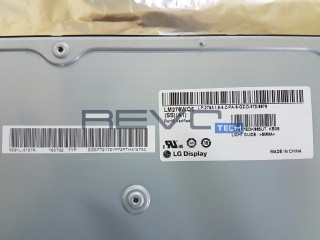

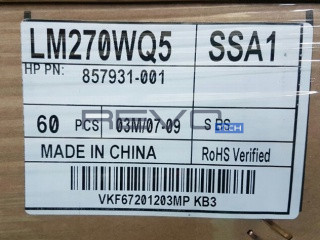

27" Inch TFT-LCD Display

LM270WQ5-SSA1
LG Display

Home
TFT-LCD
LG Display
LM270WQ5-SSA1

27" Inch TFT-LCD Display
LM270WQ5-SSA1
LG Display

Product description

LM270WQ5-SSA1 is a display manufactured by LG Display. It has a resolution of 2560 x 1440, brightness of 350 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 21.9
Backlight Location: Edge (Bottom side)
Backlight: WLED
Backlight Lamp Quantity: 16S4P
Baklight Arrangement: 4 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 43.4
Backlight Voltage Typical: 46.6
Backlight Voltage Maximum: 49.8
Backlight Current Minimum (mAh): 90
Backlight Current Typical (mAh): 95
Backlight Current Maximum (mAh): 95
Maximum Backlight Consumption: 17.9
Typical Backlight Consumption: 16.8
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BM06B-SHJS-TB(HF)
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 4
Signal bits: 8-bit
VCC: 10
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS050-C51B-C39-A
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 2560 x 1440
Dot Pitch: 0.08
Dot pitch vertical: 0.23
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 350
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 76
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 27
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 335.66
Outline Vertical: 348.3
Outline Depth Typical: 8.9
Outline Depth Max: 12.7000
Mounting: Rear mounting holes (9-M3)
Orientation: Vertical
Mounting Holes: Rear mounting holes (9-M3)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2975
Typical Weight: 2975
Maximum Weight: 2975

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
