27" Inch TFT-LCD Display

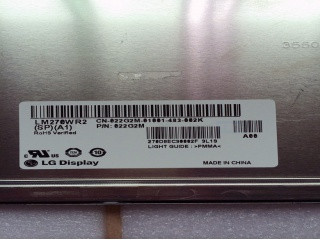

LM270WR2-SPA1
LG Display

Product description

LM270WR2-SPA1 is a display manufactured by LG Display. It has a resolution of 3840 x 2160, brightness of 350 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 30.6
Backlight Location: Edge (Top side)
Backlight: WLED
Backlight Lamp Quantity: 17S4P
Baklight Arrangement: 4 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 51.9
Backlight Voltage Typical: 51.9
Backlight Voltage Maximum: 51.9
Backlight Current Typical (mAh): 120
Maximum Backlight Consumption: 26.5
Typical Backlight Consumption: 24.9
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: SM06B-SHJH(HF)
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: eDP
Signal Channels: 4
VCC: 10
Maximum LCD Power Consumption: 7.13
Typical LCD Power Consumption: 5.7

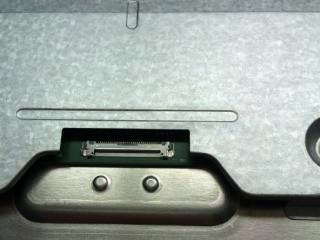

Signal Interface: Connector
Signal Interface Manufacturer: LS Mtron
Signal Interface Model: GT05Q-30S-H10-MN
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: EDP-30P4L-050A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 3840 x 2160
Dot Pitch: 0.05
Dot pitch vertical: 0.16
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 350
Contrast: 1000
Gray Scale: 8-bit + Hi-FRC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 27
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 335.34
Bezel Height: 340.4
Outline Vertical: 368.2
Outline Depth Typical: 13.3
Outline Depth Max: 18.5000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 3300
Typical Weight: 3300
Maximum Weight: 3300

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
