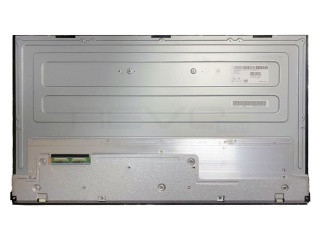

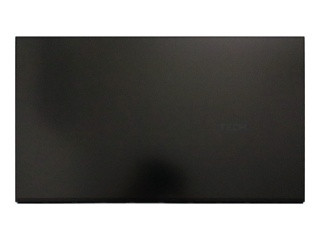

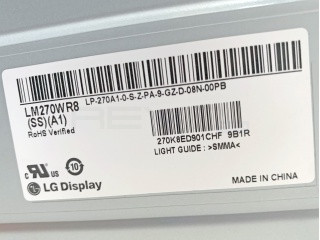

LG Display LM270WR8-SSA1 - TFT-LCD 3840 x 2160 UHD 4K

Product description

LM270WR8-SSA1 is a display manufactured by LG Display. It has a resolution of 3840 x 2160, brightness of 450 cd/m2 and contrast of 1000:1.

Electrical Specs

Backlight: WLED
Backlight Voltage Minimum: 22.9
Backlight Voltage Typical: 22.9
Backlight Voltage Maximum: 22.9
Backlight Current Typical (mAh): 0.08
Minimum Backlight Consumption: 27.5
Maximum Backlight Consumption: 28.4
Typical Backlight Consumption: 27.5
Backlight Connection: via Connector
Blu interface pin pitch mm: 0
Blu interface amount: 10
Blu interface pin amount: 1
Signal type: eDP , HBR2
Signal Channels: 16
VCC: 10
Maximum LCD Power Consumption: 10.62
Typical LCD Power Consumption: 8.5
Signal Interface: Connector
Signal Interface Manufacturer: Pitch
Signal Interface Model: 20525-060E-01
Signal Interface Connectors: 2
Signal Pins Quantity: 60

Optical specs

Panel type: TFT-LCD
Resolution: 3840 x 2160
Dot Pitch: 0.05
Dot pitch vertical: 0.16
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 450
Contrast: 1000
Gray Scale: 8-bit + Hi-FRC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)

Mechanical specs

Display Type: LCM
Size: 27
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 335.66
Outline Vertical: 347.45
Outline Depth Typical: 6.9
Outline Depth Max: 15.8000
Orientation: Vertical
Mounting Holes: Rear mounting holes

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 3330
Typical Weight: 3330
Maximum Weight: 3330

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
