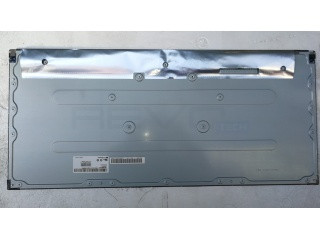

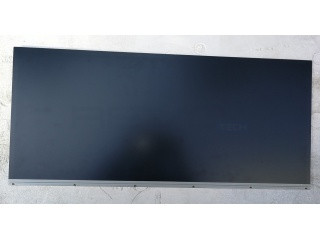

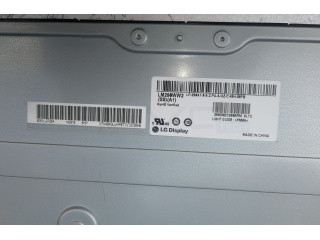

29" Inch TFT-LCD Display

LM290WW2-SSA1
LG Display

Home
TFT-LCD
LG Display
LM290WW2-SSA1

29" Inch TFT-LCD Display
LM290WW2-SSA1
LG Display

Product description

LM290WW2-SSA1 is a display manufactured by LG Display. It has a resolution of 2560 x 1080, brightness of 250 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 22.2
Backlight Location: Edge (Bottom side)
Backlight: WLED
Backlight Lamp Quantity: 17S4P
Baklight Arrangement: 4 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 49.3
Backlight Voltage Typical: 49.3
Backlight Voltage Maximum: 49.3
Backlight Current Minimum (mAh): 80
Backlight Current Typical (mAh): 85
Backlight Current Maximum (mAh): 85
Maximum Backlight Consumption: 18
Typical Backlight Consumption: 16.9
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: SM06B-SHJH(HF)
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 4
Signal bits: 8-bit
VCC: 10
Maximum LCD Power Consumption: 6.6
Typical LCD Power Consumption: 5.3
Signal Interface: Connector
Signal Interface Manufacturer: LS Mtron
Signal Interface Model: GT05P-51S-H38-E1500
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 2560 x 1080
Dot Pitch: 0.09
Dot pitch vertical: 0.26
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 99
Color Gamut Type: sRGB
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 29
Aspect Ratio: 21 x 9
Shape: Flat Rectangle
Vertical Active Area: 283.82
Outline Vertical: 308.9
Outline Depth Typical: 11
Outline Depth Max: 17.5000
Mounting: Rear mounting holes
Orientation: Vertical
Mounting Holes: Rear mounting holes

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 3200
Typical Weight: 3200
Maximum Weight: 3200

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
