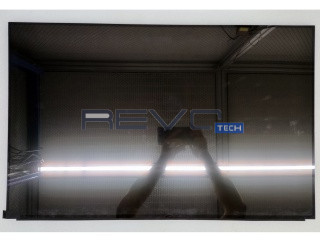

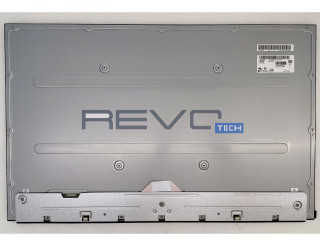

30" Inch TFT-LCD Display

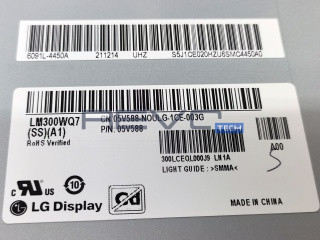

LM300WQ7-SSA1
LG Display

Home
TFT-LCD
LG Display
LM300WQ7-SSA1

30" Inch TFT-LCD Display
LM300WQ7-SSA1
LG Display

Product description

LM300WQ7-SSA1 is a display manufactured by LG Display. It has a resolution of 2560 x 1600, brightness of 350 cd/m2 and contrast of 1000:1.

Electrical Specs

Vertical frequency hz display output: 60
Backlight Location: Edge light type
Backlight: WLED
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: 6 rows
Backlight Voltage Minimum: 40.3
Backlight Voltage Typical: 40.3
Backlight Voltage Maximum: 40.3
Backlight Current Typical (mAh): 0.08
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 10035WS-H06D
Blu interface pin pitch mm: 1
Blu interface amount: 2
Blu interface pin amount: 6
Signal type: eDP , HBR2
Signal Channels: 4
VCC: 10
Maximum LCD Power Consumption: 3.6
Typical LCD Power Consumption: 2.9
Signal Interface: Connector
Signal Interface Manufacturer: LS Mtron
Signal Interface Model: GT05Q-30S-H10-MN
Signal Interface Connectors: 1
Signal Pins Configuration: EDP-30P4L-031A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 2560 x 1600
Dot Pitch: 0.08
Dot pitch vertical: 0.25
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 350
Contrast: 1000
Gray Scale: 8-bit + Hi-FRC
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.33
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 30
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 400.8
Outline Vertical: 414.8
Outline Depth Typical: 10
Outline Depth Max: 14.0000
Mounting: Rear mounting holes
Orientation: Vertical
Mounting Holes: Rear mounting holes

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 4305
Typical Weight: 4305
Maximum Weight: 4305

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
