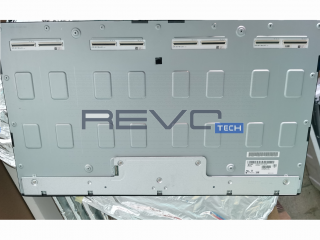

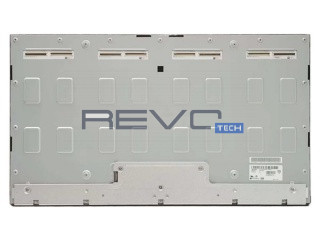

32" Inch TFT-LCD Display

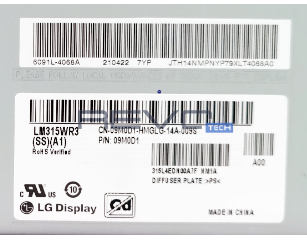

LM315WR3-SSA1
LG Display

Product description

LM315WR3-SSA1 is a display manufactured by LG Display. It has a resolution of 3840 x 2160, brightness of 750 cd/m2 and contrast of 1300:1.

Electrical Specs

Backlight Voltage Minimum: 16
Backlight Voltage Typical: 16
Backlight Voltage Maximum: 16
Minimum Backlight Consumption: 74.3
Maximum Backlight Consumption: 79.8
Typical Backlight Consumption: 74.3
Backlight Connection: via Connector
Blu interface pin pitch mm: 0
Blu interface amount: 96
Blu interface pin amount: 0
VCC: 10
Maximum LCD Power Consumption: 11.9
Typical LCD Power Consumption: 9.5
Signal Interface: Connector
Signal Interface Manufacturer: Pitch
Signal Interface Model: GT05Q-30S-H10-MN
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: EDP-30P4L-031A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 3840 x 2160
Dot Pitch: 0.06
Dot pitch vertical: 0.18
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 750
Contrast: 1300
Gray Scale: 8-bit + Hi-FRC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: Yes

Mechanical specs

Display Type: LCM
Size: 32
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 392.23
Outline Vertical: 405.85
Outline Depth Typical: 10.2
Outline Depth Max: 16.6000
Orientation: Vertical
Mounting Holes: Rear mounting holes (13-M3)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 5640
Typical Weight: 5640
Maximum Weight: 5640

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
