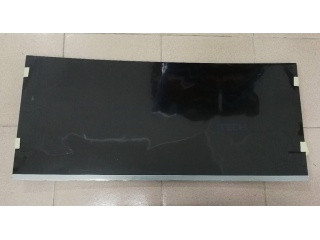

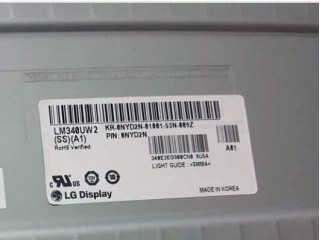

LG Display LM340UW2-SSA1 - TFT-LCD 3440 x 1440

Product description

LM340UW2-SSA1 is a display manufactured by LG Display. It has a resolution of 3440 x 1440, brightness of 300 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 43.1
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 12S4P
Baklight Arrangement: 4 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 34.2
Backlight Voltage Typical: 36.6
Backlight Voltage Maximum: 39
Backlight Current Minimum (mAh): 120
Backlight Current Typical (mAh): 125
Backlight Current Maximum (mAh): 125
Maximum Backlight Consumption: 37.5
Typical Backlight Consumption: 35.1
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: SM06B-SHJH(HF)
Blu interface pin pitch mm: 1
Blu interface amount: 2
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 4
Signal bits: 10-bit
VCC: 10
Maximum LCD Power Consumption: 10
Typical LCD Power Consumption: 8
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS050-C51B-C39-A
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 3440 x 1440
Dot Pitch: 0.08
Dot pitch vertical: 0.25
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 300
Contrast: 1000
Gray Scale: 8-bit + Hi-FRC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 34
Aspect Ratio: 21 x 9
Shape: Curved Display
Vertical Active Area: 334.8
Outline Vertical: 363
Outline Depth Typical: 40.7
Outline Depth Max: 41.2000

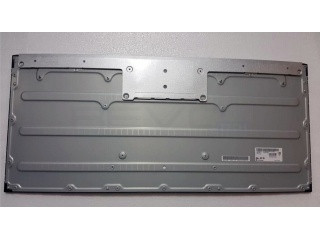

Mounting: Rear mounting poles (17-M3)
Orientation: Vertical
Mounting Holes: Rear mounting poles (17-M3)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 5300
Typical Weight: 5300
Maximum Weight: 5300

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
