10.4" Inch TFT-LCD Display

LP104S2
LG Display

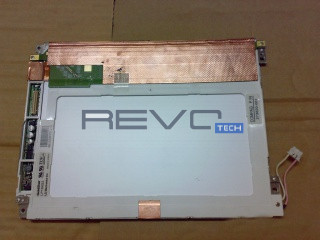

LG Display LP104S2 - TFT-LCD 800 x 600

Product description

LP104S2 is a display manufactured by LG Display. It has a resolution of 800 x 600, brightness of 70 cd/m2 and contrast of 100:1.

Electrical Specs

Backlight Location: Edge (Top side)
Backlight: CCFL
Backlight Lamp Quantity: 1 pcs
Baklight Arrangement: Straight
Backlight Voltage Minimum: 430
Backlight Voltage Typical: 475
Backlight Voltage Maximum: 520
Backlight Current Minimum (mAh): -1
Backlight Current Typical (mAh): 4
Backlight Current Maximum (mAh): 5
Backlight Operation Frequency: 45
Typical Backlight Consumption: 1.9
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHR-03VS-1
Blu interface pin pitch mm: 4
Blu interface amount: 1
Blu interface pin amount: 3
Blu interface pin configuration: 0
Signal type: TTL
Signal Channels: 1
Signal bits: 6-bit
VCC: 5
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: DF9-41P-1V
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 41
Signal Pins Configuration: DRGB-41P1C6B-050B

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 600
Dot Pitch: 0.09
Dot pitch vertical: 0.26
Glare: Antiglare
Hardness: Hard coating (2H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 70
Contrast: 100
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 40
Top Viewing Angle: 40
Right Viewing Angle: 10
Bottom Viewing Angle: 30
Optimal Viewing Direction: 6 o'clock
Response Time: 30
Response Time: 50
Chromaticity: 0.32
Chromaticity: 0.32
light uniformity: 1.20/1.35 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 10.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 158.4
Bezel Height: 162.4
Outline Vertical: 179.4
Outline Depth Typical: 8.5
Mounting: Face mounting holes (2-Φ3.4, 2-3.4×4.4)
Orientation: Vertical
Mounting Holes: Face mounting holes (2-Φ3.4, 2-3.4×4.4)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
