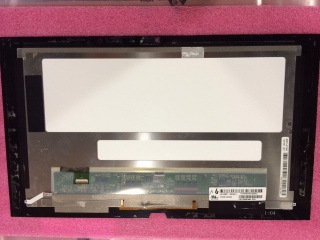

11.6" Inch TFT-LCD Display

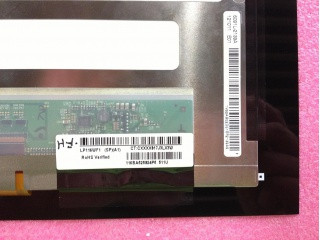

LP116WF1-SPA1
LG Display

Home
TFT-LCD
LG Display
LP116WF1-SPA1

11.6" Inch TFT-LCD Display
LP116WF1-SPA1
LG Display

Product description

LP116WF1-SPA1 is a display manufactured by LG Display. It has a resolution of 1920 x 1080, brightness of 360 cd/m2 and contrast of 600:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 5 strings
Baklight Arrangement: 5 rows
Lamp Lifetime (Time to Half Brightness): 15000
Backlight Voltage Minimum: 24.7
Backlight Voltage Typical: 24.7
Backlight Voltage Maximum: 24.7
Backlight Current Typical (mAh): 17
Maximum Backlight Consumption: 2.22
Typical Backlight Consumption: 2.1
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: eDP
Signal Channels: 2
VCC: 3.3
Maximum LCD Power Consumption: 1.1
Typical LCD Power Consumption: 0.95
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: FH35W-35S-0.3SHW
LCD Signal Interface Pins Pitch (mm): 0.3
Signal Interface Connectors: 1
Signal Pins Quantity: 35

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.04
Dot pitch vertical: 0.13
Glare: Anti Fingerprint
Hardness: Hard coating (8H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 360
Contrast: 600
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.40/1.60 (Typ./Max.)
(13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: Assembly
Size: 11.6
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 144.18
Outline Vertical: 157.8
Outline Depth Max: 4.0300
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED
Simultaneous Touch Points: 10
Touchscreen Signal Type: USB
Touchscreen Connection: Connector
Touchscreen Controller: With touch controller

Weights specs

Minimum Weight: 257.5
Typical Weight: 257.5
Maximum Weight: 257.5

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
