14.1" Inch TFT-LCD Display
LP141WP2-TLA1
LG Display

Product description

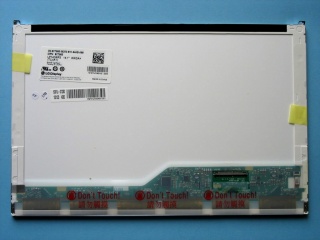

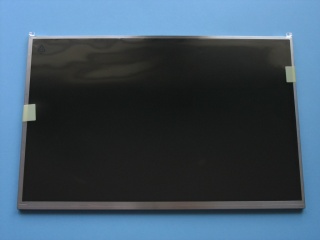

LP141WP2-TLA1 is a display manufactured by LG Display. It has a resolution of 1440 x 900, brightness of 300 cd/m2 and contrast of 300:1.

Electrical Specs

Total Power Consumption (Watts): 5.26
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 9S6P
Baklight Arrangement: 6 rows
Lamp Lifetime (Time to Half Brightness): 10000
Backlight Voltage Minimum: 28.8
Backlight Voltage Typical: 28.8
Backlight Voltage Maximum: 28.8
Backlight Current Typical (mAh): 19
Maximum Backlight Consumption: 3.5
Typical Backlight Consumption: 3.11
Backlight Driver Board: With LED Driver
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 2
Signal bits: 6-bit
VCC: 3.3
Maximum LCD Power Consumption: 1.78
Typical LCD Power Consumption: 1.55
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-VHP50S-A-HF11
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 50
Signal Pins Configuration: LVDS-50P2C6B-010B

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1440 x 900
Dot Pitch: 0.07
Dot pitch vertical: 0.21
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 300
Contrast: 300
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 45
Color Gamut Type: NTSC
Left Viewing Angle: 45
Top Viewing Angle: 45
Right Viewing Angle: 15
Bottom Viewing Angle: 35
Optimal Viewing Direction: 6 o'clock
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.40/1.60 (Typ./Max.)
(13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 14.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 189.81
Bezel Height: 193.8
Outline Vertical: 206.5
Outline Depth Max: 5.5000
Mounting: Side mounting holes (4-M2) on left, right bezel; Face mounting holes (2 pcs) on up slugs
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2) on left, right bezel; Face mounting holes (2 pcs) on up slugs

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 375
Typical Weight: 375
Maximum Weight: 375

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
