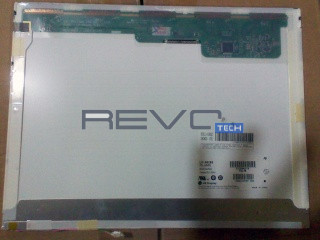

LG Display LP150X08-TLAD - TFT-LCD 1024 x 768

Product description

LP150X08-TLAD is a display manufactured by LG Display. It has a resolution of 1024 x 768, brightness of 160 cd/m2 and contrast of 250:1.

Electrical Specs

Total Power Consumption (Watts): 4.76
Backlight Location: Edge (Bottom side)
Backlight: CCFL
Backlight Lamp Quantity: 1 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 10000
Backlight Voltage Minimum: 630
Backlight Voltage Typical: 630
Backlight Voltage Maximum: 630
Backlight Current Minimum (mAh): 2
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 7
Backlight Operation Frequency: 65
Maximum Backlight Consumption: 4.3
Typical Backlight Consumption: 3.9
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: LVDS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Maximum LCD Power Consumption: 0.87
Typical LCD Power Consumption: 0.76
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 768
Dot Pitch: 0.1
Dot pitch vertical: 0.3
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 160
Contrast: 250
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 45
Color Gamut Type: NTSC
Left Viewing Angle: 45
Top Viewing Angle: 45
Right Viewing Angle: 15
Bottom Viewing Angle: 35
Optimal Viewing Direction: 6 o'clock
Response Time: 10
Response Time: 20
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.65 (Max.)
(13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 15
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 228.1
Bezel Height: 231.4
Outline Vertical: 241.5
Outline Depth Typical: 5.9
Outline Depth Max: 6.2000
Mounting: Side mounting holes (8-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (8-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 537.5
Typical Weight: 537.5
Maximum Weight: 537.5

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
