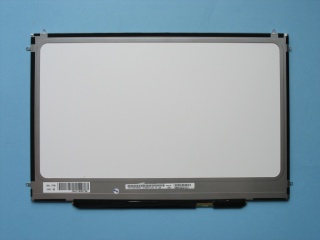

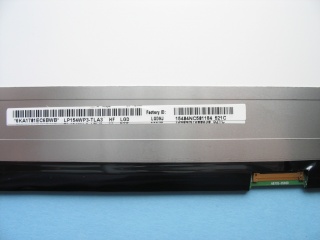

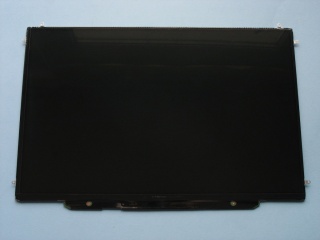

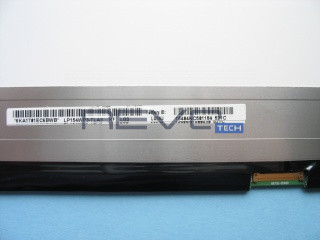

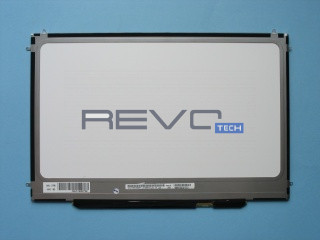

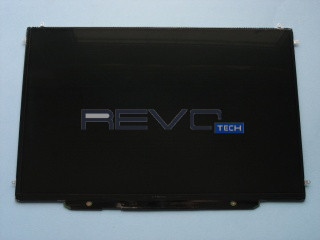

15.4" Inch TFT-LCD Display

LP154WP3-TLA3
LG Display

Home
TFT-LCD
LG Display
LP154WP3-TLA3

15.4" Inch TFT-LCD Display
LP154WP3-TLA3
LG Display

Product description

LP154WP3-TLA3 is a display manufactured by LG Display. It has a resolution of 1440 x 900, brightness of 330 cd/m2 and contrast of 800:1.

Electrical Specs

Total Power Consumption (Watts): 4.66
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 10S6P
Baklight Arrangement: 6 rows
Lamp Lifetime (Time to Half Brightness): 10000
Backlight Voltage Minimum: 33
Backlight Voltage Typical: 33
Backlight Voltage Maximum: 33
Backlight Current Typical (mAh): 18
Typical Backlight Consumption: 3.56
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 2
Signal bits: 6-bit
VCC: 3.3
Maximum LCD Power Consumption: 1.25
Typical LCD Power Consumption: 1.1
Signal Interface: Connector
Signal Interface Manufacturer: I-PEX
Signal Interface Model: 20474-040E-12
LCD Signal Interface Pins Pitch (mm): 0.4
Signal Interface Connectors: 1
Signal Pins Quantity: 40
Signal Pins Configuration: LVDS-40P2C6B-025A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1440 x 900
Dot Pitch: 0.08
Dot pitch vertical: 0.23
Glare: Glare
Hardness: Hard coating
Reflection: Yes
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 330
Contrast: 800
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 90
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 60
Bottom Viewing Angle: 60
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.43/1.67 (Typ./Max.)
(160 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 15.4
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 207.09
Outline Vertical: 229.87
Outline Depth Max: 4.0300
Mounting: Face mounting holes (6 pcs) on left, right, up slugs
Orientation: Vertical
Mounting Holes: Face mounting holes (6 pcs) on left, right, up slugs

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 450
Typical Weight: 450
Maximum Weight: 450

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
