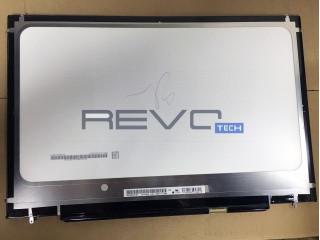

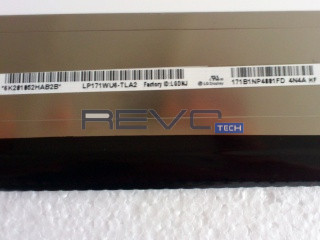

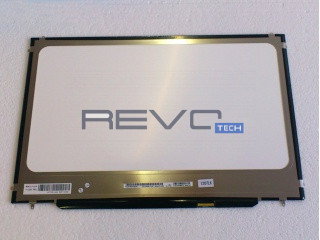

LG Display LP171WU6-TLA2 - TFT-LCD 1920 x 1200

Product description

LP171WU6-TLA2 is a display manufactured by LG Display. It has a resolution of 1920 x 1200, brightness of 275 cd/m2 and contrast of 800:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 14S6P
Baklight Arrangement: 6 rows
Lamp Lifetime (Time to Half Brightness): 10000
Backlight Voltage Minimum: 42
Backlight Voltage Typical: 42
Backlight Voltage Maximum: 42
Backlight Current Typical (mAh): 22.5
Typical Backlight Consumption: 5.67
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 2
Signal bits: 6-bit
VCC: 3.3
Maximum LCD Power Consumption: 1.82
Typical LCD Power Consumption: 1.65
Signal Interface: Connector
Signal Interface Manufacturer: I-PEX
Signal Interface Model: 20474-040E-12
LCD Signal Interface Pins Pitch (mm): 0.4
Signal Interface Connectors: 1
Signal Pins Quantity: 40
Signal Pins Configuration: LVDS-40P2C6B-025A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1200
Dot Pitch: 0.06
Dot pitch vertical: 0.19
Glare: Antiglare
Reflection: Yes
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 275
Contrast: 800
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 60
Bottom Viewing Angle: 60
Optimal Viewing Direction: 6 o'clock
light uniformity: 1.43/1.67 (Typ./Max.)
(160 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 17.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 229.5
Outline Depth Typical: 3.9
Outline Depth Max: 4.3000
Mounting: Face mounting holes (4 pcs) on up, down slugs; 4 teeth on left, right bezel
Orientation: Vertical
Mounting Holes: Face mounting holes (4 pcs) on up, down slugs; 4 teeth on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 590
Typical Weight: 590
Maximum Weight: 590

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
