7" Inch TFT-LCD Display

LQ070Y5DG01
Sharp

Home
TFT-LCD
Sharp
LQ070Y5DG01

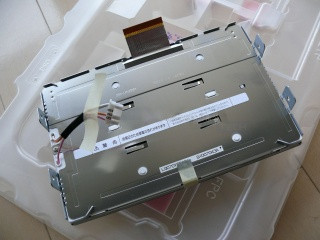

Sharp LQ070Y5DG01 - TFT-LCD 800 x 480

Product description

LQ070Y5DG01 is a display manufactured by Sharp. It has a resolution of 800 x 480, brightness of 530 cd/m2 and contrast of 250:1.

Electrical Specs

Backlight Location: Edge
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 10000
Backlight Voltage Minimum: 370
Backlight Voltage Typical: 420
Backlight Voltage Maximum: 470
Backlight Current Minimum (mAh): -0.5
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 6.5
Typical Backlight Consumption: 5.04
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHR-03(4-3)VS-1N
Blu interface pin pitch mm: 4
Blu interface amount: 1
Blu interface pin amount: 3
Blu interface pin configuration: 0
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 6-bit
VCC: -13.7
LCD Signal VDD: 13
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 60

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.19
Glare: Antiglare
Reflection: Yes
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 530
Contrast: 250
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 60
Top Viewing Angle: 60
Right Viewing Angle: 35
Bottom Viewing Angle: 50
Optimal Viewing Direction: 6 o'clock
Response Time: 10
Response Time: 20
Chromaticity: 0.31
Chromaticity: 0.34
light uniformity: 1.82 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 91.44
Bezel Height: 94.9
Outline Vertical: 110.5
Outline Depth Typical: 10.15
Outline Depth Max: 25.0000
Mounting: Rear mounting holes (4-Ф4.0), Side mounting holes (4-Ф3.5) on left, right slugs
Orientation: Vertical
Mounting Holes: Rear mounting holes (4-Ф4.0), Side mounting holes (4-Ф3.5) on left, right slugs

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 310
Typical Weight: 310
Maximum Weight: 310

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -40
Storage Temperature Maximum: 95
