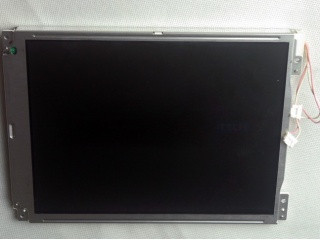

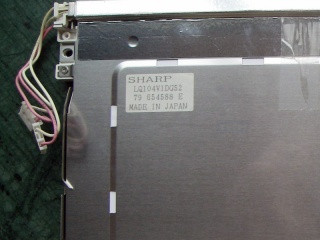

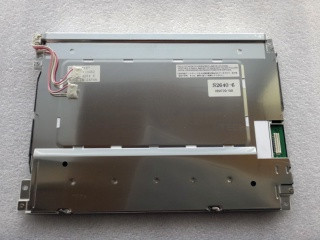

Sharp LQ104V1DG52 - TFT-LCD 640 x 480

Product description

LQ104V1DG52 is a display manufactured by Sharp. It has a resolution of 640 x 480, brightness of 350 cd/m2 and contrast of 300:1.

Electrical Specs

Backlight Location: Edge (Top side)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 467
Backlight Voltage Typical: 467
Backlight Voltage Maximum: 467
Backlight Current Minimum (mAh): 3.5
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 7
Backlight Operation Frequency: 60
Typical Backlight Consumption: 5.6
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHR-03VS-1
Blu interface pin pitch mm: 4
Blu interface amount: 2
Blu interface pin amount: 3
Blu interface pin configuration: 0
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: DF9MA-31P-1V
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 31
Signal Pins Configuration: DRGB-31P1C6B-010K

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 640 x 480
Dot Pitch: 0.11
Dot pitch vertical: 0.33
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: Yes
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 350
Contrast: 300
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 40
Bottom Viewing Angle: 70
Optimal Viewing Direction: 6 o'clock
Response Time: 10
Response Time: 25
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.45 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 10.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 158.4
Bezel Height: 162.4
Outline Vertical: 179.4
Outline Depth Max: 15.5000
Mounting: Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel
Orientation: Vertical
Mounting Holes: Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 620
Typical Weight: 620
Maximum Weight: 620

Temperature Specs

Minimum Operating Temperature: -10
Maximum Operating Temperature: 65
Storage Temperature Minumum: -30
Storage Temperature Maximum: 70
