10.4" Inch TFT-LCD Display

LQ10D421
Sharp

Home
TFT-LCD
Sharp
LQ10D421

10.4" Inch TFT-LCD Display
LQ10D421
Sharp

Product description

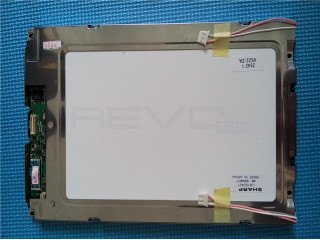

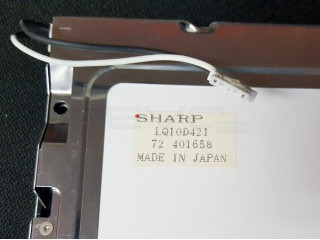

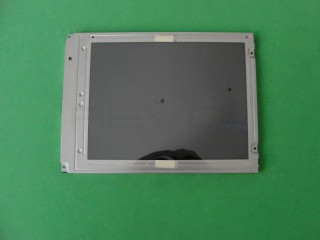

LQ10D421 is a display manufactured by Sharp. It has a resolution of 640 x 480, brightness of 300 cd/m2 and contrast of 300:1.

Available Stock

Condition: New Pulls Functionally new, pulled from non-used equipment, may have cosmetic marks that do not affect performance
Available: 50 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 466.7
Backlight Voltage Typical: 466.7
Backlight Voltage Maximum: 466.7
Backlight Current Minimum (mAh): 2
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 6.5
Backlight Operation Frequency: 35
Typical Backlight Consumption: 5.6
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 640 x 480
Dot Pitch: 0.11
Dot pitch vertical: 0.33
Glare: Clear
Hardness: Hard coating (3H)
Reflection: Yes
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 300
Contrast: 300
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 40
Bottom Viewing Angle: 70
Optimal Viewing Direction: 6 o'clock
Response Time: 20
Response Time: 40
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.45 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 10.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 158.4
Bezel Height: 162.4
Outline Vertical: 195
Outline Depth Max: 11.5000
Mounting: Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel
Orientation: Vertical
Mounting Holes: Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 620
Typical Weight: 620
Maximum Weight: 620

Temperature Specs

Maximum Operating Temperature: 65
Storage Temperature Minumum: -30
Storage Temperature Maximum: 70
