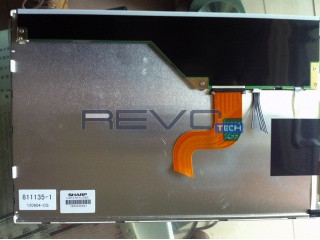

Sharp LQ121K1LG53 - TFT-LCD 1280 x 800

Product description

LQ121K1LG53 is a display manufactured by Sharp. It has a resolution of 1280 x 800, brightness of 400 cd/m2 and contrast of 800:1.

Electrical Specs

Total Power Consumption (Watts): 7.5
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 10.2
Maximum Voltage Driver Consumption: 13.8
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: SM06B-SHLS-TF
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: DF14H-20P-1.25H
LCD Signal Interface Pins Pitch (mm): 1.25
Signal Interface Connectors: 1
Signal Pins Quantity: 20
Signal Pins Configuration: LVDS-20P1C8B-010G

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 800
Dot Pitch: 0.07
Dot pitch vertical: 0.2
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 400
Contrast: 800
Colors: 16200000
Gray Scale: 6-bit + FRC
Gamut Percentage: 76
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 65
Bottom Viewing Angle: 80
Optimal Viewing Direction: 6 o'clock
Chromaticity: 0.3
Chromaticity: 0.32
light uniformity: 1.33 (Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 12.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 163.2
Bezel Height: 167.2
Outline Vertical: 184
Outline Depth Typical: 8.6
Outline Depth Max: 9.6000
Mounting: Side mounting holes (4-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 550
Typical Weight: 550
Maximum Weight: 550

Temperature Specs

Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 70
