15" Inch TFT-LCD Display

LQ150X1DWF1
Sharp

Home
TFT-LCD
Sharp
LQ150X1DWF1

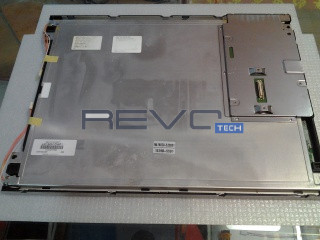

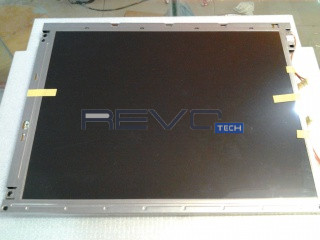

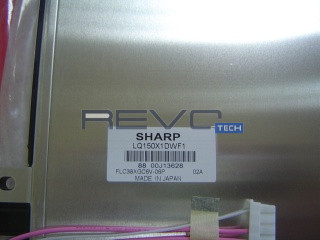

15" Inch TFT-LCD Display
LQ150X1DWF1
Sharp

Product description

LQ150X1DWF1 is a display manufactured by Sharp. It has a resolution of 1024 x 768, brightness of 250 cd/m2 and contrast of 400:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 200 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 4 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 550
Backlight Voltage Typical: 580
Backlight Voltage Maximum: 610
Backlight Current Minimum (mAh): 6
Backlight Current Typical (mAh): 7
Backlight Current Maximum (mAh): 8
Backlight Operation Frequency: 50
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHR-04VS-1
Blu interface pin pitch mm: 4
Blu interface amount: 2
Blu interface pin amount: 4
Blu interface pin configuration: 0
Signal type: CMOS/TTL
Signal Channels: 2
Signal bits: 6-bit
VCC: 5
Signal Interface: Connector
Signal Interface Manufacturer: molex
Signal Interface Model: 52760-0600
LCD Signal Interface Pins Pitch (mm): 0.64
Signal Interface Connectors: 1
Signal Pins Quantity: 60
Signal Pins Configuration: DRGB-60P2C6B-020B

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 768
Dot Pitch: 0.1
Dot pitch vertical: 0.3
Glare: Antiglare
Glare: 25
Hardness: Hard coating (2H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 250
Contrast: 400
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Optimal Viewing Direction: Symmetrical
Response Time: 15
Response Time: 10
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 15
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 228.1
Bezel Height: 233.1
Outline Vertical: 263.5
Mounting: Face mounting holes (2-Ф4.5; 2-4.5×6.0) on left, right bezel
Orientation: Vertical
Mounting Holes: Face mounting holes (2-Ф4.5; 2-4.5×6.0) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1600
Typical Weight: 1600
Maximum Weight: 1600

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
